ATEN CS1716A KVM switch Rack mounting Black
Part number CS1716A
16PORT PS/2 USB CS1716A KVM SWITCH 1U RM W/ CABLES
- One USB-PS/2 console controls up to 16 computers
- Daisy-chain up to 31 additional units - control up to 512 computers from a single console
- Front accessible USB port allows each computer to access USB peripherals*
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Multiplatform support - Windows, Linux, Mac and Sun
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B

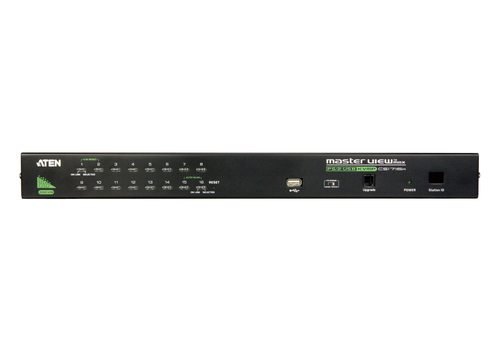

- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Manufacturer
- ATEN
- Part number
- CS1716A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

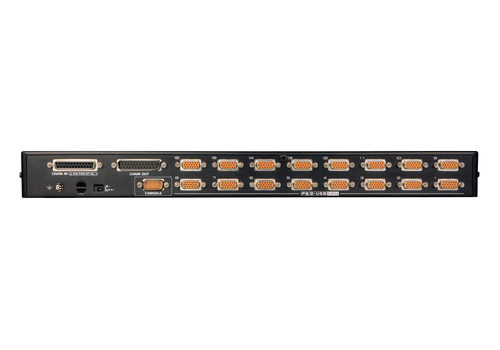

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.
Specifications
| Number of computers controlled | 512 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 1 |
| DC-in jack | Yes |
| Maximum resolution | 2048 x 1536 pixels |
|---|---|
| Scan interval | 1,255 s |
| DDC2B support | No |
| Hot-Plug support | Yes |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | Yes |
| Power source | DC |
|---|---|
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.6 W |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 437.2 mm |
|---|---|
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 2.85 kg |
| Cables included | KVM |
|---|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Harmonized System (HS) code | 85176200 |
|---|
