ATEN CS1308 KVM switch Rack mounting Black
Part number CS1308
8-PORT USB/PS2 COMBO KVM SWITCH
- One USB-PS/2 console controls 8 computers
- Cascade up to 2 levels - control up to 64 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Manufacturer
- ATEN
- Part number
- CS1308
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

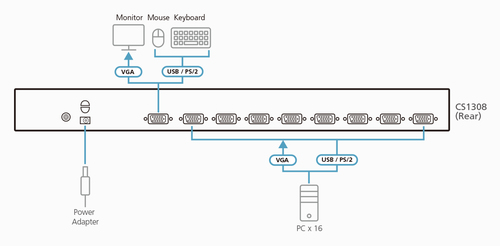

The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers.
Specifications
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | No |
| Mouse port type | No |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 9 |
| DC-in jack | Yes |
| Ethernet LAN | No |
|---|
| Maximum resolution | 2048 x 1536 pixels |
|---|---|
| Scan interval | 255 s |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Built-in display | No |
|---|
| Power consumption (typical) | 5 W |
|---|
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 433 mm |
|---|---|
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 1.89 kg |
| Manual | Yes |
|---|
| Connectivity technology | Wired |
|---|---|
| I/O ports | 1 x RJ11 |
| Compatible operating systems | Windows 2000/XP/Vista, Linux, Mac, Sun |
| Power requirements | DC 5.3 V |
| Harmonized System (HS) code | 85176200 |
|---|
