Products › Input & Output Devices

ATEN

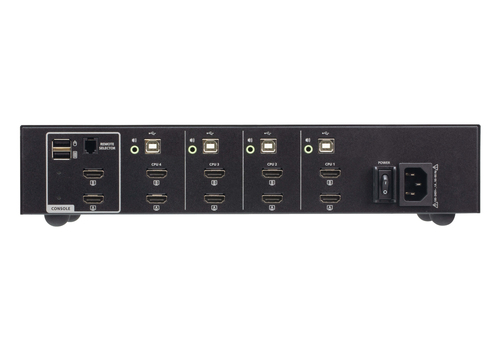

ATEN CS1144H4 KVM switch Black

Part number CS1144H4

4-PORT USB HDMI DUAL DISPLAY PP4.0 SECURE KVM

  • Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
  • Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
  • Configurable Device Filtration –supports administrative configuration to filter USB HID devices
  • Port selection via pushbuttons / Remote Port Selector (RPS) only to enhance security
Manufacturer
ATEN
Part number
CS1144H4
Condition
New
Category
Input & Output Devices › Switches & Hubs
1GPA category
Hardware

Overview

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

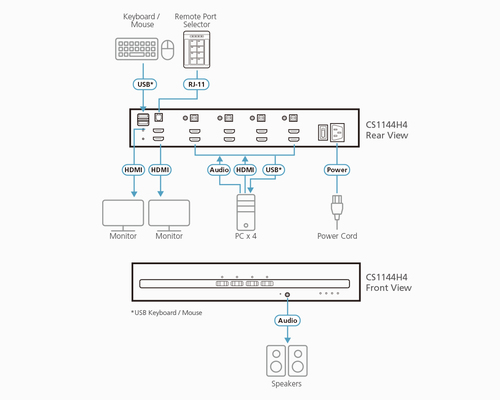

ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1 With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144H4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Specifications

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
USB 2.0 Type-B ports quantity4
Console portsHDMI, USB A
Console USB ports quantity2
Console HDMI ports quantity2
Audio connectionsYes
Headphone outputs4
RJ-11 ports quantity1
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160 pixels
Design
Product colourBlack
Housing materialMetal
Wired remote switchYes
LED indicatorsYes
Push buttonYes
Display
Built-in displayNo
Power
Power sourceAC
Input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current1 A
Power consumption (typical)7.2 W
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width163.9 mm
Depth335 mm
Height65.5 mm
Weight2.33 kg
Packaging data
Package width131 mm
Package depth540 mm
Package height233 mm
Package volume16480.4047212 cm³
Package weight2.97 kg
Packaging content
Cables includedAC
ManualYes
Logistics data
Master (outer) case net weight6.99 kg
Master (outer) case width420 mm
Master (outer) case length555 mm
Master (outer) case height258 mm
Master (outer) case gross weight9.83 kg
Master (outer) case volume60144.9821784 cm³
Country of originTaiwan

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
