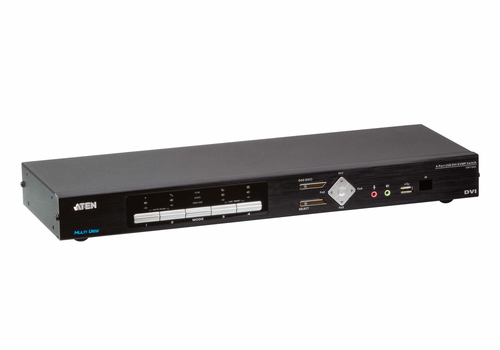

ATEN CM1164A KVM switch Rack mounting Black

Part number CM1164A

4PORT DVI QUAD-IN-ONE KVMP REPLACES CM1164

Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)

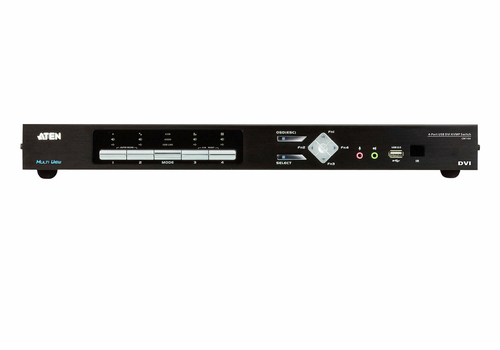

System configuration via front panel, OSD, IR Remote – display mode and port selection
Supports superior video quality – Up to 1920 x 1200; YCbCr 4:2:2
Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands1
Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus
Supports Extended Desktops Boundless Switching2
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
HDCP 1.4 compliant

Manufacturer: ATEN
Part number: CM1164A
Condition: New
Category: Input & Output Devices › Switches & Hubs

Overview

ATEN CM1164A 4-Port USB DVI Multi-View KVMPTM Switch improves the operational efficiency of intensive monitoring applications. With limited screen, to allow users to manage the data more efficiently, up to 16 video sources can be selected, switched and displayed at the same time with independent keyboard, mouse control. The CM1164A provides users a real-time monitoring functionality by combining a 4-port DVI-D switch with a 2-port USB hub and providing the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and Full Screen mode.

Featuring Boundless Switching, the CM1164A allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.

Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1164A units via a single console. In addition, CM1164A can be cascaded up to 2 levels to reach the maximum of 16 video sources simultaneously displayed on a display.

Engineered to meet the ever-increasing demand for multi-view functionality, the CM1164A is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.

Specifications

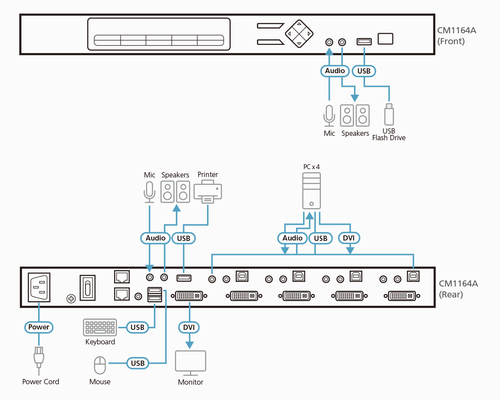

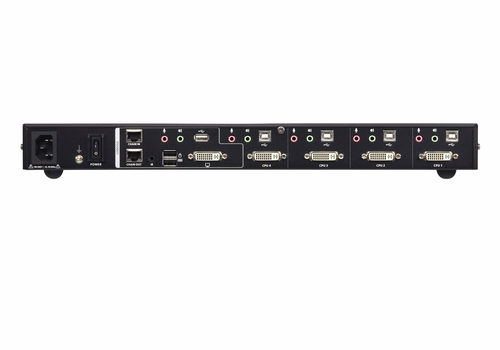

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
DVI-D ports quantity	5
USB 2.0 Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DVI-D, RJ–45, USB A
Console USB ports quantity	2
USB hub	Yes
USB 2.0 Type-A hub ports quantity	2
Headphone outputs	5
Number of microphone inputs	5

Network
Ethernet LAN (RJ-45) ports	2

Performance
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
Scan interval	5,10,15,30,60,90 s
Daisy chain	Yes

Design
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes

Display
Built-in display	No
On Screen Display (OSD)	Yes

Power
Power source	AC
Input voltage	110-220 V
Power consumption (typical)	9.7 W

Sustainability
Compliance certificates	RoHS

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width	164 mm
Depth	437.2 mm
Height	44 mm
Weight	2.46 kg

Packaging content
Cables included	AC, KVM
Manual	Yes
Rack mount kit	Yes
