ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB)
Part number CL6708MW
8PORT 17WIDE SCREEN LCD KVM DVI/ FULL HD 1080P
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

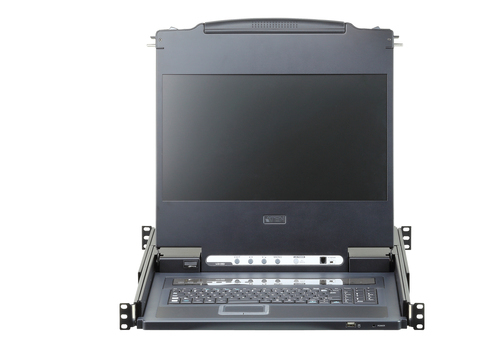

- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
- Manufacturer
- ATEN
- Part number
- CL6708MW
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Specifications
| Display diagonal | 43.9 cm (17.3") |
|---|---|
| Display resolution | 1920 x 1080 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Response time | 16 ms |
| Supported resolutions | up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| Material | Metal, Plastic |
|---|---|
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Number of computers controlled | 64 |
| On/off switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| 3.5 mm (1/8-inch) out | Yes |
|---|---|
| 3.5 mm (1/8-inch) in | Yes |
| DVI connector type | DVI-I |
| DVI input ports | 1 |
| DVI output ports | 8 |
| I/O ports | 1x RJ-11 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 8 |
| Built-in touchpad | Yes |
|---|---|
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Power consumption (typical) | 29.26 W |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Windows operating systems supported | Yes |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Yes |
| Width | 689.2 mm |
|---|---|
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 12.7 kg |
| Cables included | AC, KVM |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
