ATEN CL5716M KVM switch Rack mounting Black
Part number CL5716M
16PORT PS/2 SLIDEAWAY LCD KVM SWITCH 1U RM W/ CABLES

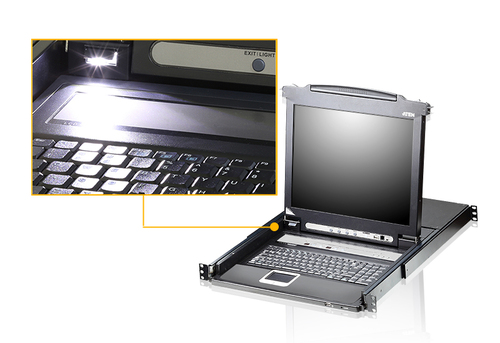

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 16 computers
- Manufacturer
- ATEN
- Part number
- CL5716M
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
The CL5716M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716M can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716M, so that up to 512 computers can all be controlled from a single KVM console.
The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.
Specifications
| Number of computers controlled | 16 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 16 |
| Console ports | PS/2, VGA (D-Sub) |
| HD type | SXGA |
|---|---|
| Maximum resolution | 1280 x 1024 pixels |
| Video bandwidth | 75 Hz |
| Hot-Plug support | Yes |
| Daisy chain | Yes |
| Number of users | 5 user(s) |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, UK English, US English |
| Built-in display | Yes |
|---|---|
| Display | LED |
| Display diagonal | 43.2 cm (17") |
| On Screen Display (OSD) | Yes |
| Compliance certificates | RoHS |
|---|
| Cables included | KVM |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
