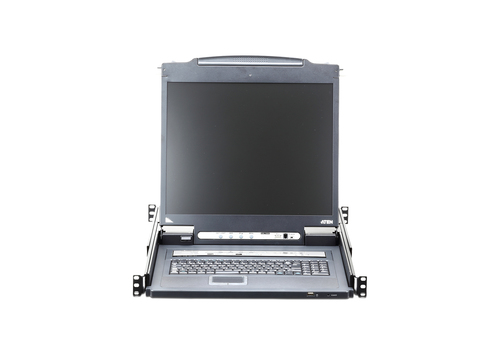

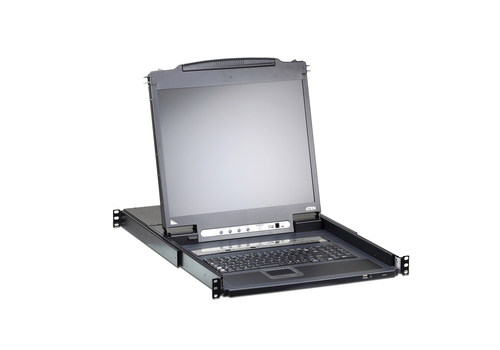

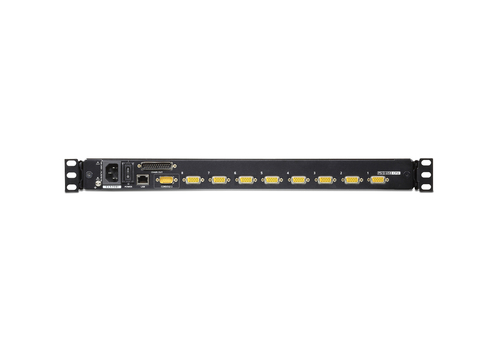

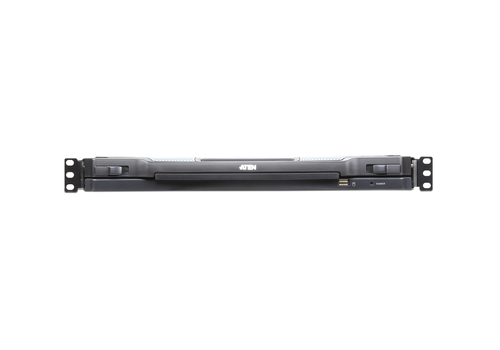

ATEN CL5708IN KVM switch Rack mounting Black
Part number CL5708IN
8-PORT 19 LCD INTEGRATED IP KVM USB/PS2
- Rack mounting 1U Black
- Number of computers controlled: 128
- Keyboard port type: USB, PS/2 Mouse port type: USB
- Full HD 1920 x 1200 pixels
- Housing material: Metal, Plastic
- LCD Built-in display
- 25 W
- Manufacturer
- ATEN
- Part number
- CL5708IN
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
19 1 Local/Remote Share Access 8-Port Single Rail LCD KVM over IP Switch
Specifications
| Number of computers controlled | 128 |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB |
| Console ports | SPHD-18 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| HD type | Full HD |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 255 s |
| Daisy chain | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Built-in display | Yes |
|---|---|
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| Input voltage | 100-240 V |
|---|---|
| AC input frequency | 50-60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 25 W |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 689.2 mm |
|---|---|
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 13.4 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
