ATEN CL3884NW KVM switch Rack mounting Black
Part number CL3884NW
18.5IN FHD 4PORT USB HDMI MULTI-VIEW DUAL RAIL LCD KVM SWITCH
- Reliability and Operational Versatility
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Quick Access Toolbar – intuitive user interface for editing
- Supports an extra console via USB/HDMI connectors for up to two console displays*
- Display mode layout customization
- Superior video quality – 1920 x 1200 @ 60 Hz
- Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
- Boundless Switching – simply moves the mouse cursor across windows to switch to other video sources
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Easily resizes and/or repositions any PiP or PbP to suit users’ viewing needs
- EDID Expert™ – selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
- Cascade up to 2 levels – controls up to 16 computers (with up to 4 x 4 Multi-View mode)
- Manufacturer
- ATEN
- Part number
- CL3884NW
- Condition
- New
- Category
- Displays › Computer Monitors
- 1GPA category
- Hardware
Overview

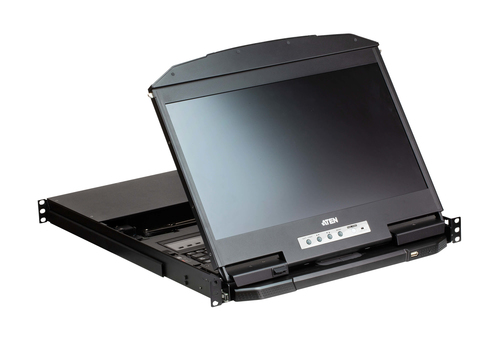

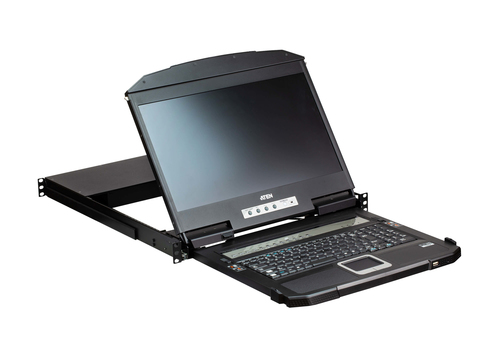

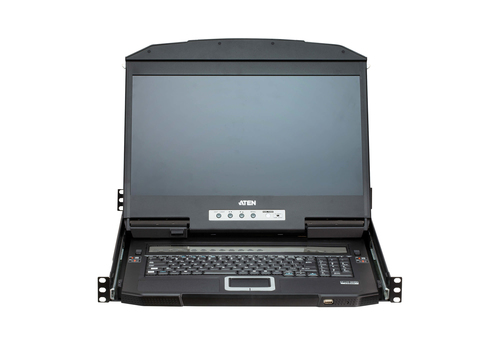

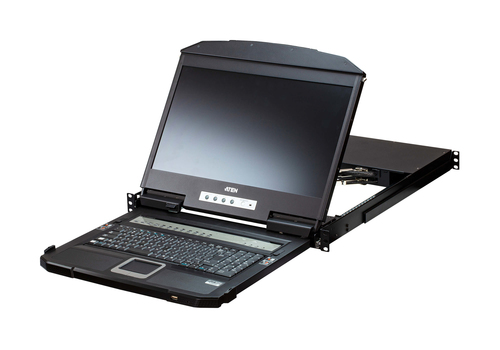

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, a 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
The CL3884NW offers dual console outputs that guarantees users real-time monitoring functionality. Users can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow users to customize which sources are being displayed. In addition, being able to cascade up to 2 levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.
Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology – Video DynaSync ™, users can enjoy better display resolutions and faster switching between systems. What’s more, the EDID modes are available for smooth power-up, high-quality display that eliminate monitor compatibility issue.

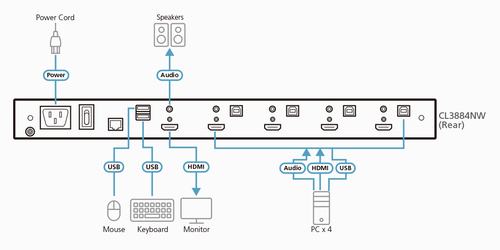

For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit’s front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.
The CL3884NW is a feature-rich LCD KVM switch which exceeds the requirements for control room applications in any industry in terms of its capabilities of optimizing video quality, space utilization, adaptive deployment, and operational versatility.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Specifications
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| HDMI ports quantity | 5 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | HDMI, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Maximum resolution | 1920 x 1080 pixels |
|---|---|
| Video bandwidth | 60 Hz |
| Scan interval | 5,10,15,30,60,90 s |
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | Yes |
|---|---|
| Display | LED |
| Display diagonal | 47 cm (18.5") |
| Input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Width | 631 mm |
|---|---|
| Depth | 480 mm |
| Height | 42.8 mm |
| Weight | 11.2 kg |
