ATEN 1U Short Depth USB VGA Single Rail LCD
Part number CL3100NX
19 ULTRA SHORT DEPTH WIDE SCREEN LCD CONSOLE VGA/USB
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
- Manufacturer
- ATEN
- Part number
- CL3100NX
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview

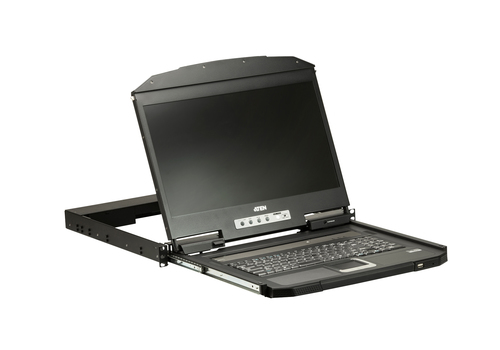

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Specifications
| Display diagonal | 47 cm (18.5") |
|---|---|
| Display resolution | 1366 x 768 pixels |
| Display | TFT-LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.3 x 0.3 mm |
| Aspect ratio | 16:9 |
| Display type | LCD |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Material | Metal, Plastic |
|---|---|
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Key lock | Yes |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| I/O ports | 3.5 mm Audio Jack, SPHD |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 3 |
| Keyboard number of keys | 105 |
|---|---|
| Built-in touchpad | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Certification | UL 60950-1, CAN/CSA |
|---|
| Power supply type | AC |
|---|---|
| Power consumption (typical) | 14.1 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Width | 477 mm |
|---|---|
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 10.2 kg |
| Package weight | 12.1 kg |
|---|---|
| Package width | 612 mm |
| Package depth | 658 mm |
| Package height | 135 mm |
| Cables included | AC, KVM |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Master (outer) case net weight | 10.2 kg |
|---|---|
| Master (outer) case width | 612 mm |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 12.1 kg |
| Products per master (outer) case | 1 pc(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
