ATEN CL1000N KVM switch Rack mounting Black
Part number CL1000N
19INCH LCD INTEGRATED CONSOLE
- Rack mounting 1U Black
- Number of computers controlled: 1
- Keyboard port type: PS/2 Mouse port type: PS/2 Video port type: VGA
- WUXGA 1920 x 1200 pixels
- Housing material: Metal, Plastic
- LCD Built-in display
- AC 24 W
- Manufacturer
- ATEN
- Part number
- CL1000N
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview

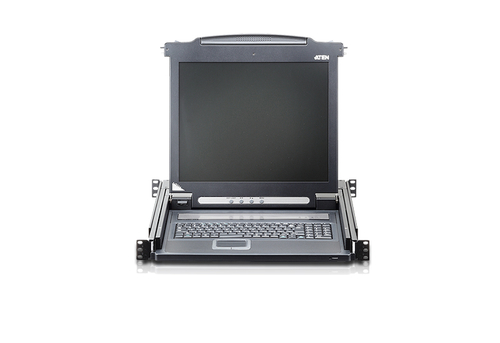

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Features:

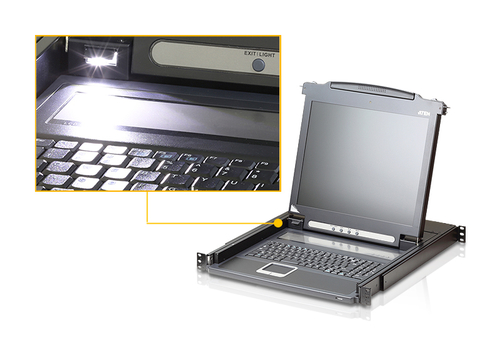

-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

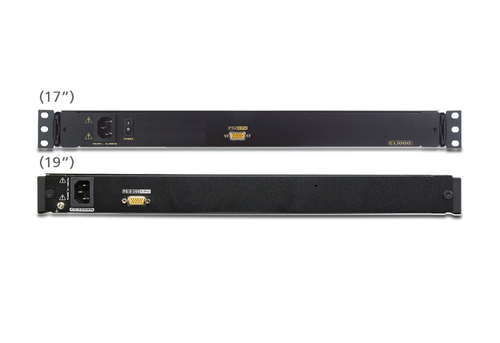

-Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
-LCD module rotates up to 115 degrees for a more comfortable viewing angle
-Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
-Compatible with most PS/2 KVM Switches
-Internal power supply
-Adjustable depth to fit within a rack
-High video resolution:
• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
-Improved design – optional single person installation kit
Note: Custom KVM cables or converters are available for USB support
* Compatible rack mounting kit:
CL1000M: 2X-010G, 2X-011G, 2X-012G
CL1000N: 2X-023G, 2X-024G, 2X-025G
Package Contents
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Power Cord
1x User Instructions
Specifications
| Number of computers controlled | 1 |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console ports | VGA (D-Sub) |
| DC-in jack | No |
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| DDC/DDC2 supported | Yes |
| DDC2B support | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Built-in display | Yes |
|---|---|
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
| Power source | AC |
|---|---|
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 24 W |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 483 mm |
|---|---|
| Depth | 585.2 mm |
| Height | 44 mm |
| Weight | 11.1 kg |
| Cables included | AC, KVM |
|---|---|
| Quick installation guide | Yes |
| Rack mount kit | Yes |
