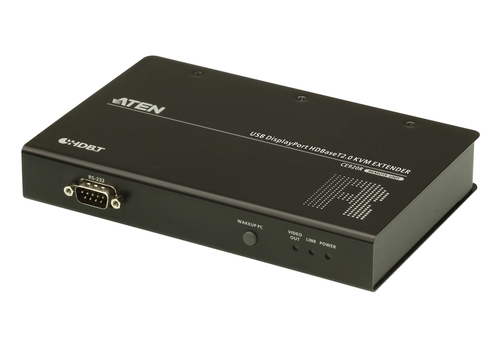

ATEN CE920 KVM extender Transmitter & receiver

Part number CE920

USB DISPLAYPORT HDBASET 20 KVM EXTENDER 4K AT 330FT

Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions

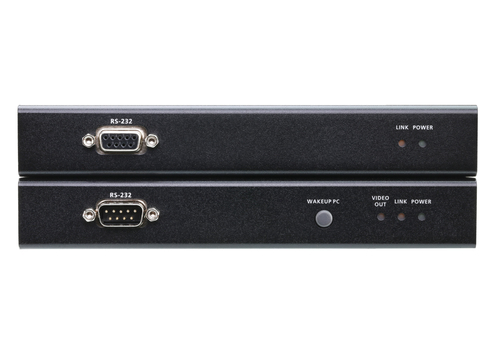

- Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
HDCP Compatible
Supports individual 2-channel stereo audio for high-quality audio applications

Manufacturer: ATEN
Part number: CE920
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

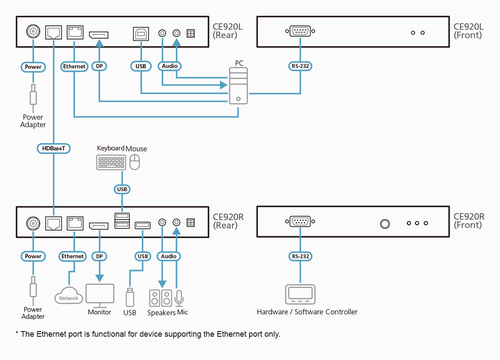

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Note: The CE920-AT supports Ethernet function and the CE920-ATA does not.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Material	Metal
LED indicators	Yes
Certification	RoHS

Transmitter

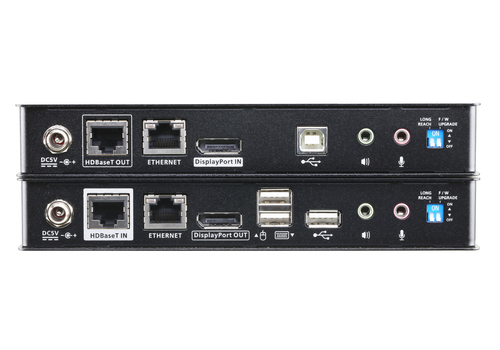

Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1

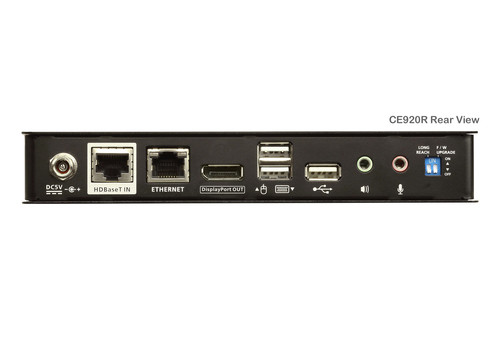

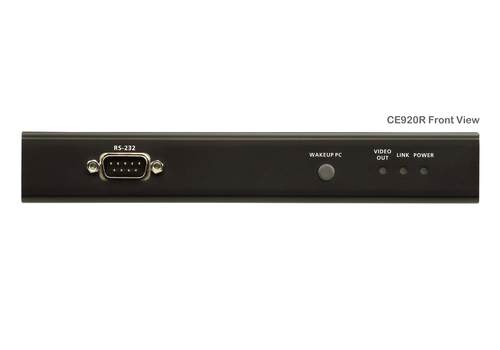

Receiver
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1

Ports & interfaces
USB 2.0 ports quantity	4
USB data transfer rates	480 Mbit/s

Power
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	3.99 W
Power consumption (receiver) (max)	6.74 W

Weight & dimensions
Transmitter width	18.2 cm
Transmitter depth	12.2 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.2 cm
Receiver height	2.87 cm
Receiver weight	640 g

Packaging content
AC adapter included	Yes
Cables included	DisplayPort
Manual	Yes
Mounting bracket(s) included	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
