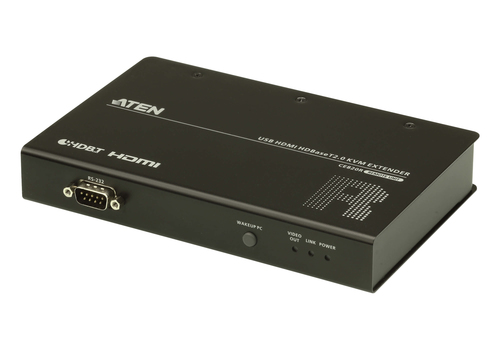

ATEN CE820 KVM extender Transmitter & receiver

Part number CE820

USB HDMI HD BASET2.0 KVM EXTENDER

Supports HDBaseT™ 2.0 technology
• Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions

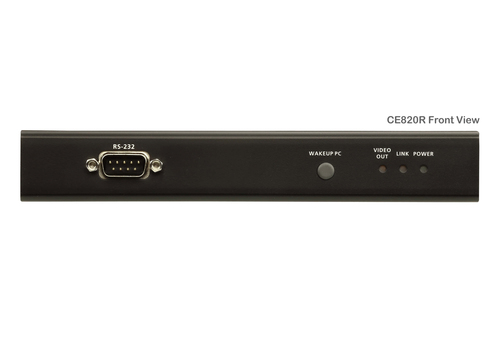

• Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
Long distance with superior video quality
• HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
• HDBaseT™ Long-Reach mode up to 1080P @ 150 m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
Supports individual 2-channel stereo audio and USB 2.0 full speed ports
Supports PC wakeup function via single pushbutton through RS-232 channel2

Manufacturer: ATEN
Part number: CE820
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

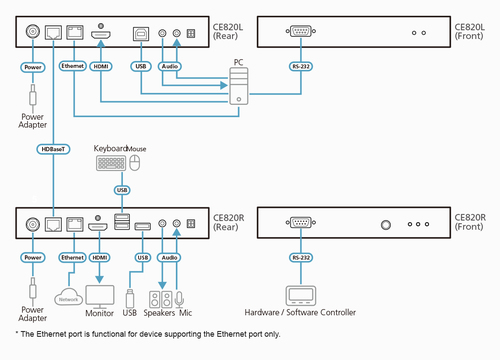

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

* Note: The CE820-AT supports Ethernet function and the CE820-ATA does not.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
Rack mounting	Yes
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Material	Metal
LED indicators	Link, Power, Video

Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1

Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1

Ports & interfaces
USB 2.0 ports quantity	4

Power
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	2.87 W
Power consumption (receiver) (max)	5.37 W

Weight & dimensions
Transmitter width	18.2 cm
Transmitter depth	12.2 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.2 cm
Receiver height	2.87 cm
Receiver weight	650 g

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Logistics data
Harmonized System (HS) code	84733080

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
