ATEN

ATEN CE624 KVM extender Transmitter & receiver

Part number CE624

USB DUAL DVI HDBASET 2.0 KVM EXTENDER UP TO 330FT W/ 1920X1200

Allows DVI Dual View access to a computer and KVM control from a remote console
HDBaseT™ 2.0 connectivity technology
• Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
• EDID Buffer for smooth power-up and the highest quality display
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Long distance superior video quality
• HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m (for single view only; dual-view resolution up to 1080p)
• HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m (for single view only; dual-view resolution up to 720p)
Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard, mouse and peripherals
Supports 2-channel PCM digital audio - ensuring high quality audio transmissions
Supports PC Wakeup function via pushbutton or hotkey

Manufacturer: ATEN
Part number: CE624
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

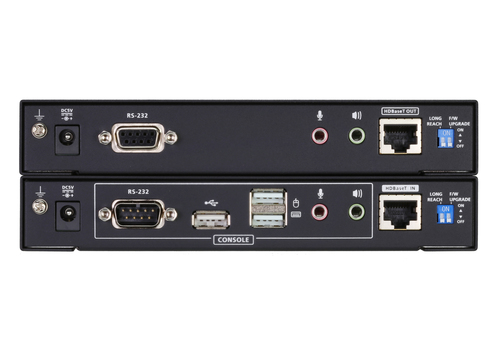

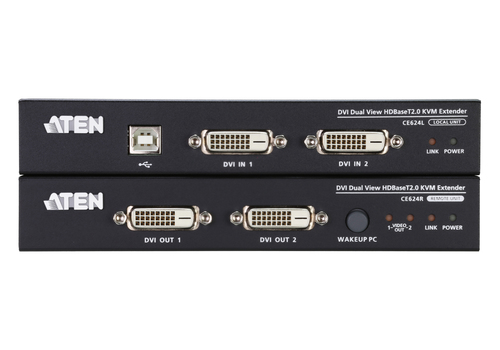

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wireless
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
KVM port selection	Hotkeys, Push-buttons
Product colour	Black
Material	Metal

Transmitter
Transmitter video port type	DVI-D
Transmitter local video port	Yes
Transmitter local video port type	DVI-D
Transmitter local keyboard/mouse port type	USB

Receiver
Receiver local video port type	DVI-D
Receiver local keyboard/mouse port type	USB

Weight & dimensions
Transmitter width	15.9 cm
Transmitter depth	17.4 cm
Transmitter height	2.88 cm
Transmitter weight	800 g
Receiver width	15.9 cm
Receiver depth	17.4 cm
Receiver height	2.88 cm
Receiver weight	810 g

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Logistics data
Harmonized System (HS) code	84733080

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
