Overview

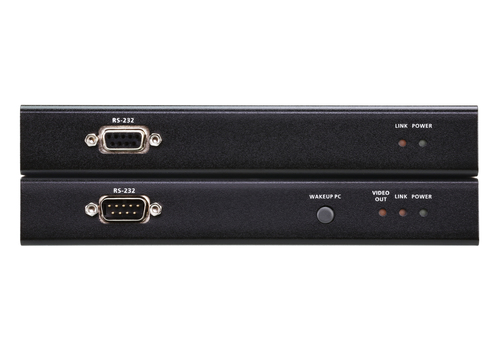

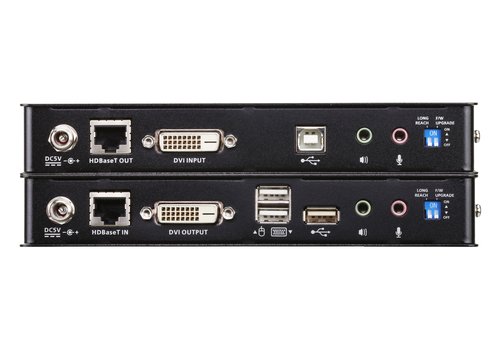

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
Specifications
Features
| Type | Transmitter & receiver |
|---|
| Connectivity technology | Wired |
|---|
| Maximum transfer distance | 100 m |
|---|
| Cable types supported | Cat5e, Cat6, Cat6a |
|---|
| Product colour | Black |
|---|
| Material | Metal |
|---|
Transmitter
| Transmitter local video port | Yes |
|---|
| Transmitter local video port type | DVI-D |
|---|
Receiver
| Receiver local video port type | DVI-D |
|---|
Power
| Power consumption (transmitter) (max) | 3 W |
|---|
| Power consumption (receiver) (max) | 5.6 W |
|---|
Weight & dimensions
| Transmitter width | 18.2 cm |
|---|
| Transmitter depth | 12.3 cm |
|---|
| Transmitter height | 2.87 cm |
|---|
| Transmitter weight | 630 g |
|---|
| Receiver width | 18.2 cm |
|---|
| Receiver depth | 12.3 cm |
|---|
| Receiver height | 2.87 cm |
|---|
| Receiver weight | 640 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Cables included | DVI |
|---|
| Manual | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
Other features
| Firmware upgradeable | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
