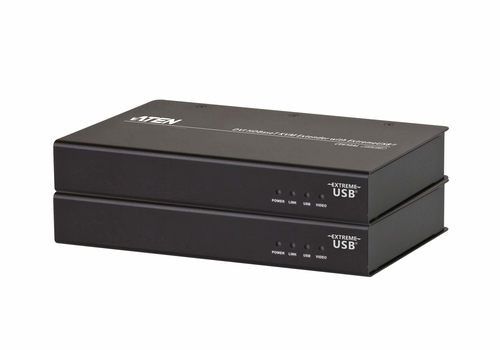

ATEN CE610A KVM extender Transmitter & receiver

Part number CE610A

300FT USB 2.0 DVI HDBASET KVM EXTENDER FOR CE610A

Uses a single Cat 5e cable to connect the local and remote units
Allows access to a computer or KVM installation from a remote console
Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Supports USB 1.1 web cameras
USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
Extends local PC Video/Keyboard/Mouse to remote side
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
*Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices.

Manufacturer: ATEN
Part number: CE610A
Condition: New
Category: Cables › I/O Device Cables
1GPA category: Hardware

Overview

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.

The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum digital resolution	1920 x 1200 pixels
Material	Metal
LED indicators	Link, Power, USB, Video

Transmitter
RJ-45 ports quantity (transmitter)	2

Ports & interfaces
USB 2.0 ports quantity	3
USB data transfer rates	40 Mbit/s

Power
Power consumption (transmitter) (max)	15 W

Weight & dimensions
Transmitter width	11.8 cm
Transmitter depth	18.2 cm
Transmitter height	2.87 cm
Transmitter weight	620 g
Receiver width	11.8 cm
Receiver depth	18.2 cm
Receiver height	2.87 cm
Receiver weight	620 g

Packaging content
AC adapter included	Yes
Cables included	DVI, USB
Manual	Yes
Mounting bracket(s) included	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Other features
Firmware upgradeable	Yes

Technical details
Video in	DVI-D
