ATEN CE100 console extender
Part number CE100
1-LOCAL 1-REMOTE USB VGA MINI USB KVM EXTENDER CAT5
- Extends local PC VGA/keyboard/Mouse to Remote side
- Uses Cat 5e cable to connect the local and remote units
- Easily add or remove computers connected to the installation
- Supports real time DDC communication
- Superior video quality – up to 1920 x 1200
- Allow access to a computer from the remote console up to 100 m distance
- Support manual compensation adjustment for better video quality
- No external power supply needed for local unit
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Wall mountable
- Manufacturer
- ATEN
- Part number
- CE100
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

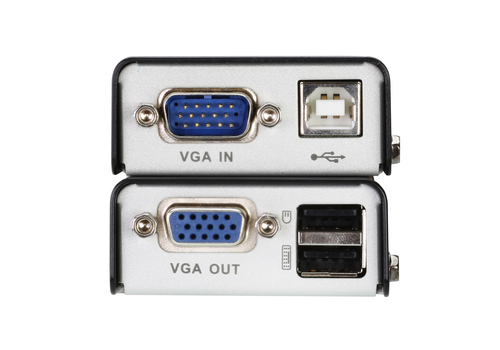

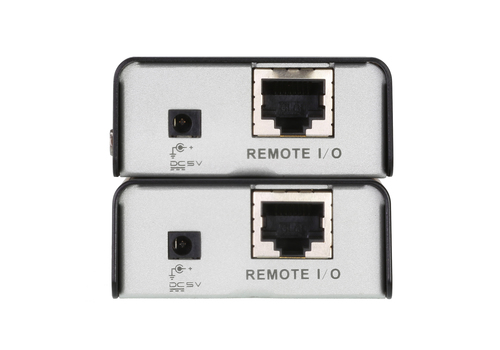

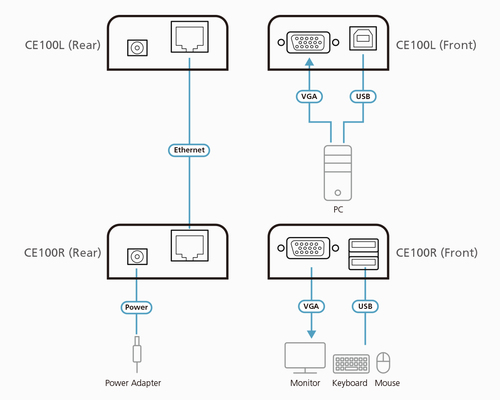

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.
Specifications
| Maximum transfer distance | 100 m |
|---|---|
| Product colour | Black |
| VGA (D-Sub) ports quantity | 2 |
|---|---|
| USB 2.0 ports quantity | 3 |
| Microphone in | No |
| Cables included | USB, VGA |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
| Harmonized System (HS) code | 84733020 |
|---|
