Overview

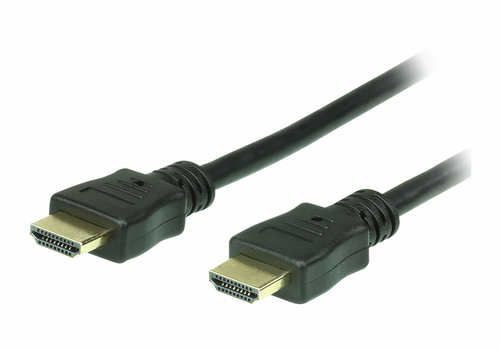

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).
Specifications
Features
| Cable length | 10 m |
|---|
| Connector 1 | HDMI Type A (Standard) |
|---|
| Connector 2 | HDMI Type A (Standard) |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| Product colour | Black |
|---|
| 3D | Yes |
|---|
| Supported graphics resolutions | 4096 x 2160 |
|---|
| HDMI Ethernet channel | Yes |
|---|
| HDCP | Yes |
|---|
| HDCP version | 1.4 |
|---|
| Maximum resolution | 4096 x 2160 pixels |
|---|
| AWG wire size | 26 |
|---|
| Connector contacts plating | Gold |
|---|
| Cable material | Copper |
|---|
| Cable jacket material | Polyvinyl chloride (PVC) |
|---|
| Magnetically shielded | Yes |
|---|
| Cable shielding | Aluminum mylar foil |
|---|
| Plug and Play | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 80 °C |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | UL VW-1, CSA |
|---|
Weight & dimensions
| Cable diameter | 8 mm |
|---|
| Weight | 750 g |
|---|
Packaging data
| Package weight | 750 g |
|---|
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Master (outer) case net weight | 9 kg |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Master (outer) case width | 330 mm |
|---|
| Master (outer) case length | 450 mm |
|---|
| Master (outer) case height | 200 mm |
|---|
| Master (outer) case gross weight | 10 kg |
|---|
| Products per master (outer) case | 12 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
