Overview

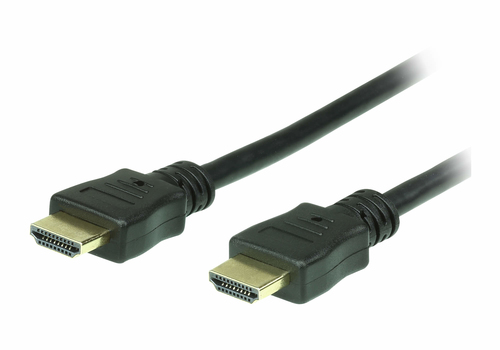

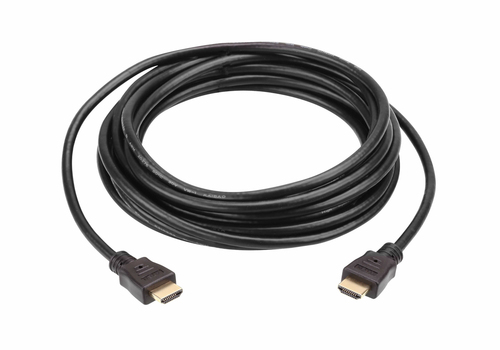

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 5 meters with resolutions up to True 4K (4096 x 2160 @60Hz 4:4:4).
Specifications
Features
| Cable length | 2 m |
|---|
| Connector 1 | HDMI Type A (Standard) |
|---|
| Connector 2 | HDMI Type A (Standard) |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Male |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| Product colour | Black |
|---|
| 3D | Yes |
|---|
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
|---|
| HDMI Ethernet channel | Yes |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| AWG wire size | 30 |
|---|
| Connector contacts plating | Gold |
|---|
| Cable material | Copper |
|---|
| Cable jacket material | Polyvinyl chloride (PVC) |
|---|
| Cable shielding | Aluminum mylar foil |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 80 °C |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Cable diameter | 6 mm |
|---|
| Weight | 125 g |
|---|
Packaging data
| Package weight | 125 g |
|---|
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Master (outer) case net weight | 12.5 kg |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Master (outer) case width | 388 mm |
|---|
| Master (outer) case length | 519 mm |
|---|
| Master (outer) case height | 348 mm |
|---|
| Master (outer) case gross weight | 13.2 kg |
|---|
| Products per master (outer) case | 100 pc(s) |
|---|
