ATEN

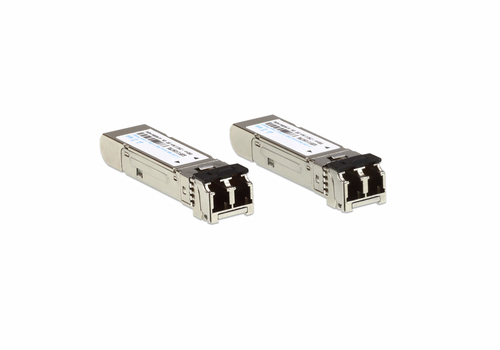

ATEN 2A-136G network transceiver module Fiber optic 1250 Mbit/s SFP 1300 nm
Part number 2A-136G
1500FT OPTICAL MODULE FOR KE8950/8952
- Extend your network connectivity up to 550 meters
- Differential Inputs and Outputs
- Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
- Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
- Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
- Operation Temperature from 0° C to 70° C
- RoHS Compliant
- Manufacturer
- ATEN
- Part number
- 2A-136G
- Condition
- New
- Category
- Network Devices › Transceivers
- 1GPA category
- Hardware
Overview
The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.
Specifications
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 1300 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Blue, Metallic |
|---|
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 146 mm |
|---|---|
| Depth | 55.9 mm |
| Height | 13 mm |
| Weight | 20 g |
| Harmonized System (HS) code | 85369010 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
