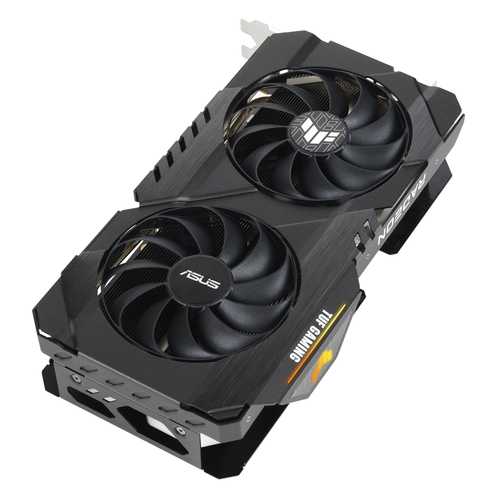

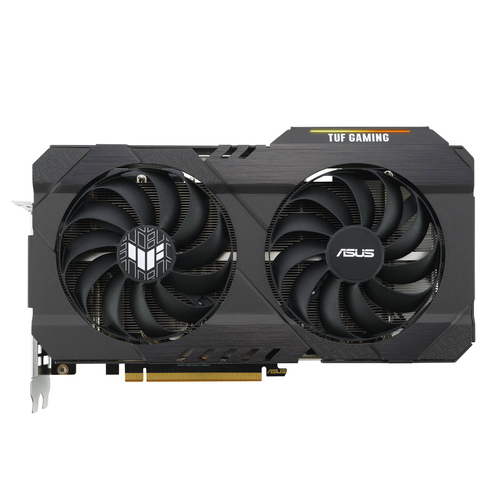

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a slimmed down barrier ring that provides better airflow through the cooling array
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
A 2.7-slot design expands cooling surface area to make the most of the powerful Axial-tech fans

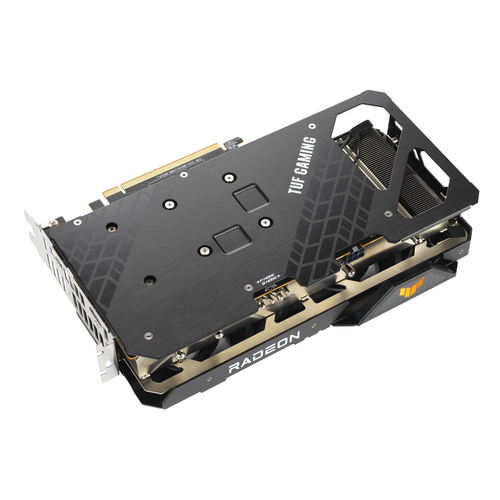

An all-aluminum shroud and metal backplate enhance durability
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games

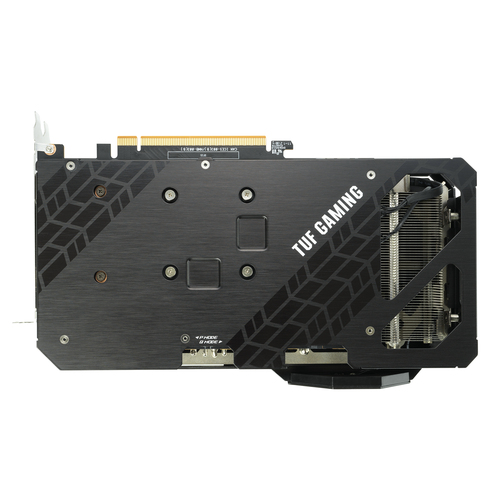

A vented backplate prevents hot air from recirculating through the cooling array
Manufacturer
ASUS
Part number
TUFRX6500XTO4GGAMING
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview

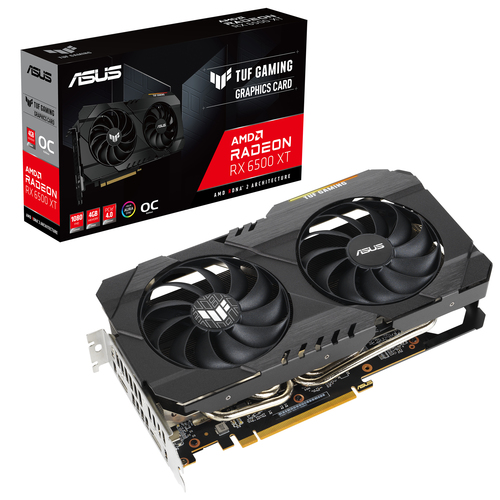

ASUS TUF Gaming Radeon™ RX 6500 XT OC Edition 4GB GDDR6 is a supreme stalwart of cooling and durability
Built TUF

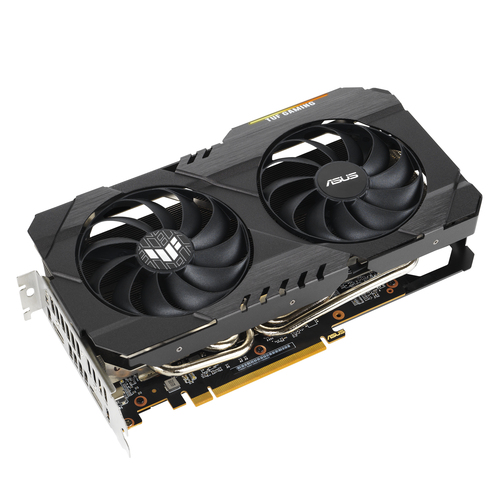

The TUF Gaming Radeon™ RX 6500 XT is a tenacious beast with a tough metal exterior, efficient cooling, and components that offer enhanced endurance. An all-metal shroud houses two powerful axial-tech fans with dual ball fan bearings. Underneath, a thick heatsink keeps thermals under tight control and TUF components, selected for maximum durability and performance, keep the card ahead of the pack. You asked for a mean machine... this one is ready for action.
Specifications
Processor
CUDA
No
Graphics processor family
AMD
Graphics processor
Radeon RX 6500 XT
Processor frequency (OC mode)
2705 MHz
Processor boost clock speed (OC mode)
2825 MHz
Processor boost clock speed (Gaming mode)
2825 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
CrossFire, NVLink
Stream processors
1024
Maximum displays per videocard
2
Memory
Discrete graphics card memory
4 GB
Graphics card memory type
GDDR6
Memory bus
64 bit
Memory bandwidth (max)
18 GB/s
Ports & interfaces
Interface type
PCI Express 4.0
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4a
Performance
OpenGL version
4.6
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
Design
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
2 fan(s)
Number of slots
2.7
Illumination
Yes
Illumination colour
Multi
Product colour
Black
Power
Minimum system power supply
500 W
Supplementary power connectors
1x 6-pin
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Length
250 mm
Depth
54 mm
Height
147 mm
Packaging data
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
