7680 x 4320 pixels 128 bit 20 Gbit/s PCI Express 5.0
HDMI ports quantity: 1 DisplayPorts quantity: 2
OpenGL version: 4.6
1x 8-pin
Manufacturer
ASUS
Part number
TUF-RX9060XT-O16G-GAMING
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview

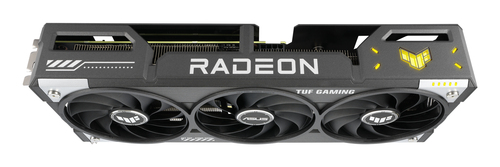

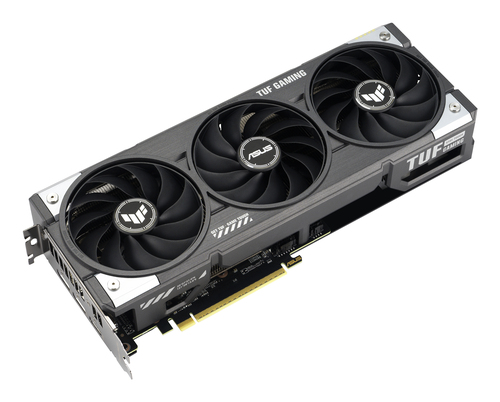

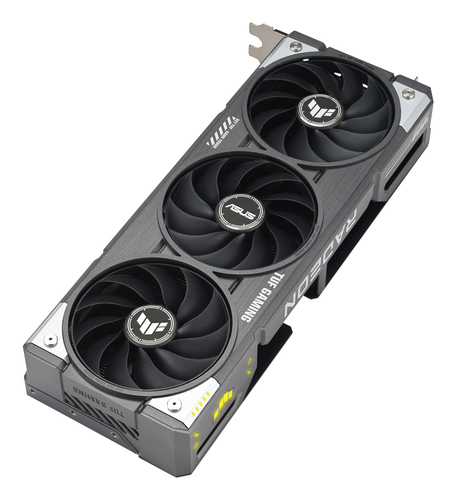

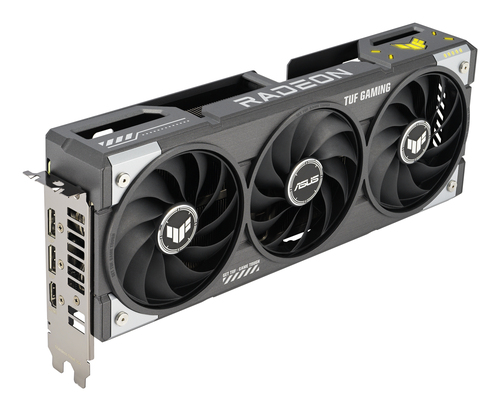

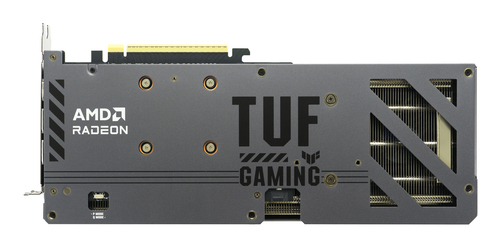

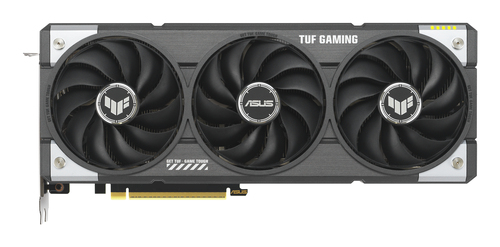

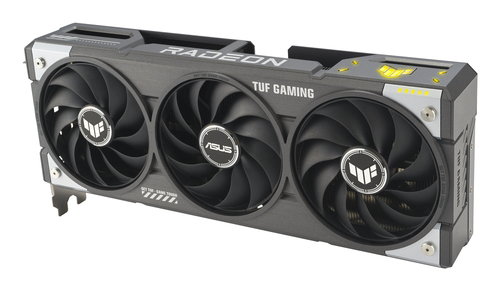

ASUS TUF Gaming Radeon™ RX 9060 XT
The AMD RDNA™ 4 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.
Specifications
Processor
CUDA
No
Graphics processor family
AMD
Graphics processor
Radeon RX 9060 XT
Processor boost clock speed
3320 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Stream processors
2048
Maximum displays per videocard
3
Memory
Discrete graphics card memory
16 GB
Graphics card memory type
GDDR6
Memory bus
128 bit
Data transfer rate
20 Gbit/s
Ports & interfaces
Interface type
PCI Express 5.0

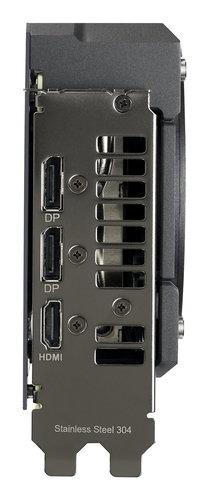

HDMI ports quantity
1
HDMI version
2.1b
DisplayPorts quantity
2
DisplayPort version
2.1a
Performance
OpenGL version
4.6
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
Overclocked (OC) edition
Yes
Design
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Bracket height
Full-Height (FH)
Number of slots
2.5
Illumination
Yes
Illumination colour
Multi
SFF ready
No
Product colour
Black
Power
Minimum system power supply
550 W
Supplementary power connectors
1x 8-pin
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Weight
941 g
Length
304 mm
Depth
50 mm
Height
126 mm
Packaging data
Package width
405 mm
Package depth
233 mm
Package height
88.5 mm
Package weight
1.56 kg
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
