7680 x 4320 pixels 192 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 2 DisplayPorts quantity: 3
OpenGL version: 4.6
1x 16-pin
Manufacturer
ASUS
Part number
TUF-RTX5070-O12G-GAMING
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview
Game TUF. Built to Last.

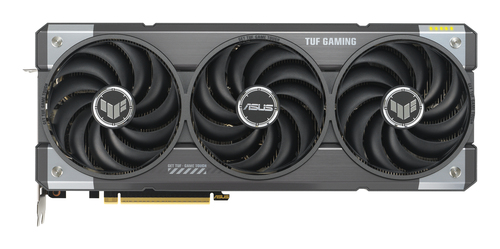

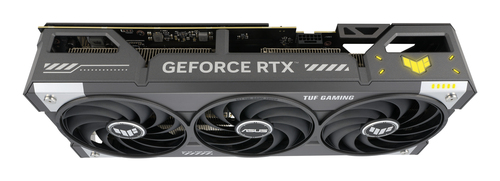

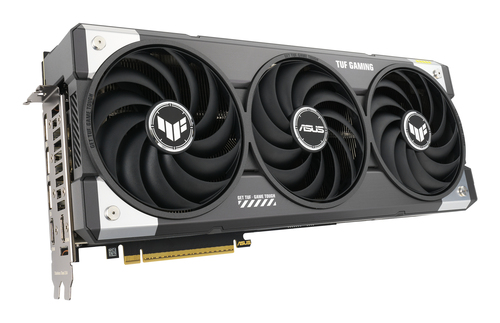

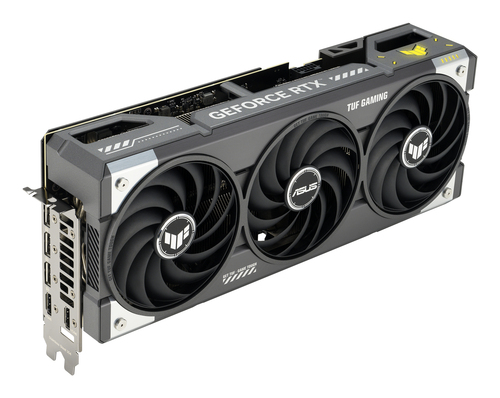

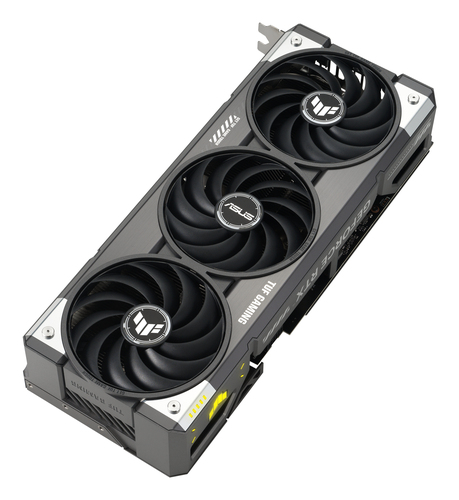

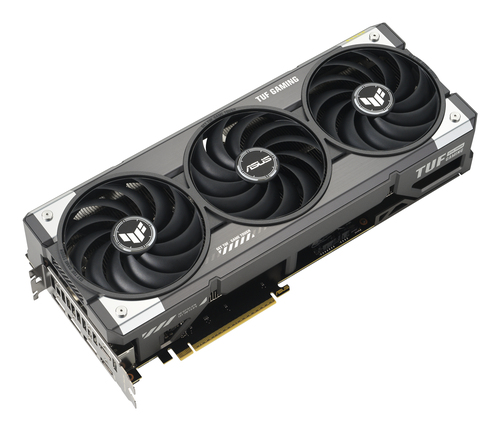

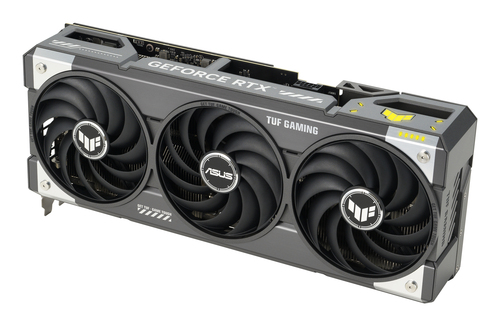

ASUS TUF Gaming GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance.
Specifications
Processor
CUDA
Yes
CUDA cores
6144
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5070
Processor boost clock speed
2610 MHz
Processor frequency (OC mode)
2640 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Maximum displays per videocard
4
Memory
Discrete graphics card memory
12 GB
Graphics card memory type
GDDR7
Memory bus
192 bit
Data transfer rate
28 Gbit/s
Ports & interfaces
Interface type
PCI Express 5.0

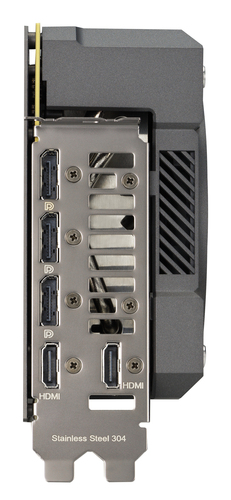

HDMI ports quantity
2
HDMI version
2.1b
DisplayPorts quantity
3
DisplayPort version
2.1b
Performance
OpenGL version
4.6
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
NVIDIA G-SYNC
Yes
NPU performance up to
1026 TOPs
Overclocked (OC) edition
Yes
Design
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Bracket height
Full-Height (FH)
Number of slots
3.125
Illumination
Yes
Illumination colour
Multi
Product colour
Multicolour
Power
Minimum system power supply
750 W
Supplementary power connectors
1x 16-pin
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Length
329 mm
Depth
62.5 mm
Height
140 mm
Packaging data
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
