ASUS

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

Part number TUF GAMING X870-PLUS WIFI

TUF GAMING X870-PLUS WF ATX MB 16+2+1 80A SPS POWER STAGES DDR5

AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC ATX AMD X870 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

Manufacturer: ASUS
Part number: TUF GAMING X870-PLUS WIFI
Term: Per Ingram SKU NR6501
Condition: New
Category: System Components › Motherboards
1GPA category: Hardware

Overview

TUF GAMING X870-PLUS WIFI

ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	192 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2x2 connectors	1
Number of SATA III connectors	2
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	4
EPS power connector (8-pin)	Yes
Number of COM connectors	1
12V power connector	Yes

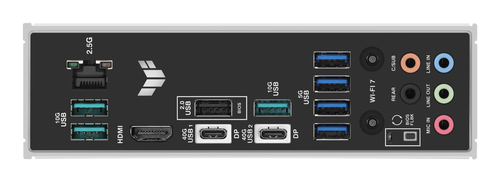

Rear panel I/O ports
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	Yes
USB connector type	USB Type-A, USB Type-C

Network
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Yes
Bluetooth version	5.4

Features
Motherboard chipset	AMD X870
Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Windows operating systems supported	Windows 11

Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	4

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit

Weight & dimensions
Width	305 mm
Depth	244 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
