ASUS

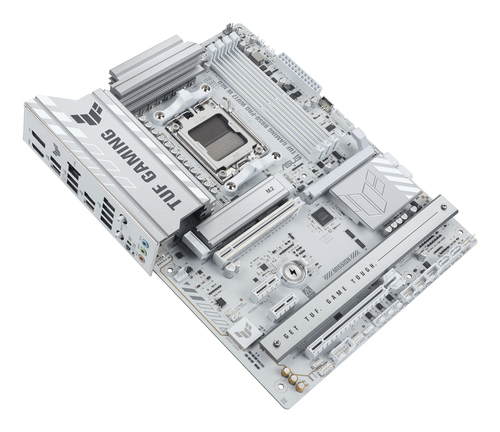

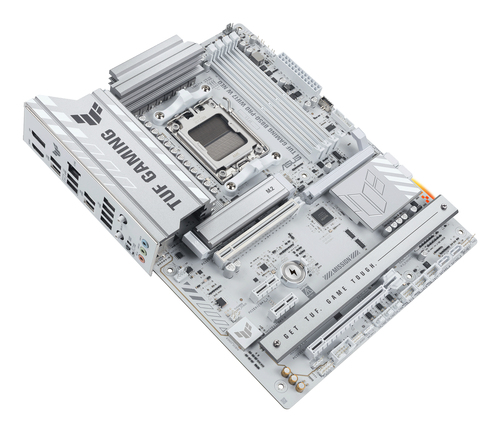

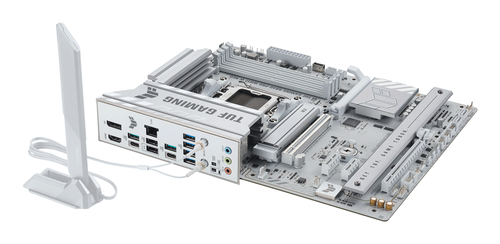

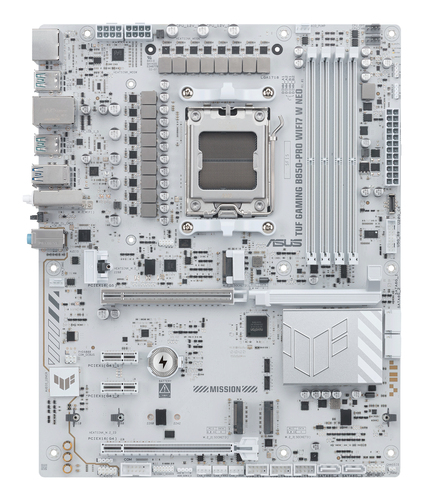

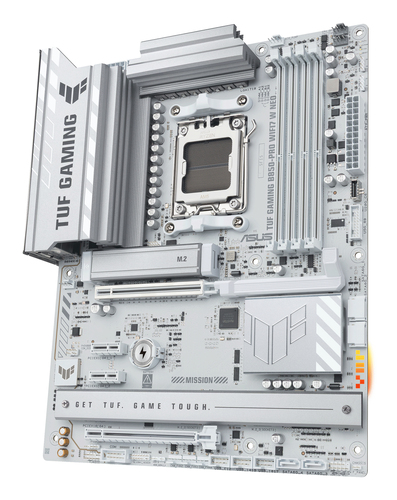

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX
Part number TUF GAMING B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 AMD ATX MB 14+2+1 POWER STAGES
AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series PC ATX AMD B850 Realtek ALC1220P 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 512 Mbit Clear CMOS button 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Manufacturer ASUS
Part number TUF GAMING B850-PRO WIFI7 W NEO
Condition New
Category System Components › Motherboards 1GPA category Hardware
Manufacturer MSRP
$249.99
On 1GPA? Sign in to see your contract price.
Stock and final pricing are confirmed by your rep on the quote. Catalog dated September 30, 2026.
Overview
TUF GAMING
B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
Processor
Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Memory
Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Supported memory clock speed (max) 9000 MHz Maximum internal memory 256 GB
Storage controllers
Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of HDDs supported 4 Number of storage drives supported 7 RAID support Yes RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported On-board graphics card No
Internal I/O
USB 2.0 connectors 3 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2x2 connectors 1 Number of SATA III connectors 4 S/PDIF out connector Yes Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 1 Number of chassis fan connectors 4 Chassis intrusion connector Yes EPS power connector (8-pin) Yes Number of COM connectors 1 Thunderbolt headers 1 12V power connector Yes Number of water pump connectors 1

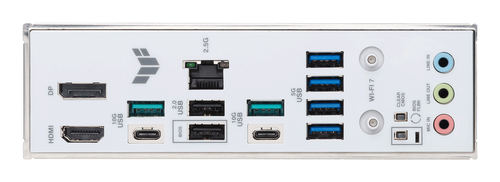

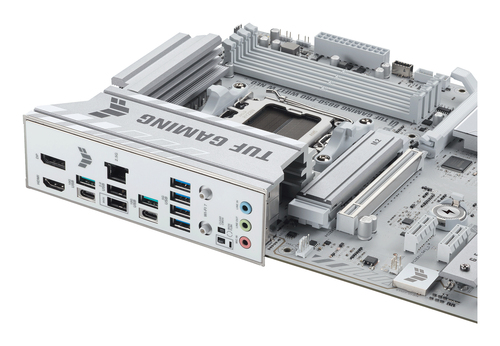

Rear panel I/O ports
USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1
Network
Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards Wi-Fi 7 (802.11be) WLAN controller model Realtek RTL8922AE Bluetooth Yes Bluetooth version 5.4
Features
Motherboard chipset AMD B850 Audio chip Realtek ALC1220P Audio output channels 7.1 channels Product colour White Component for PC Motherboard form factor ATX Motherboard chipset family AMD Windows operating systems supported Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 3 1st M.2 largest key size 2280
BIOS
BIOS type UEFI AMI BIOS memory size 512 Mbit Clear CMOS button Yes
Packaging data
Package width 353 mm Package depth 273 mm Package height 68 mm Package weight 1.94 kg
Weight & dimensions
Width 305 mm Depth 244 mm Height 50 mm
Other features
Weight 1.35 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
