ASUS

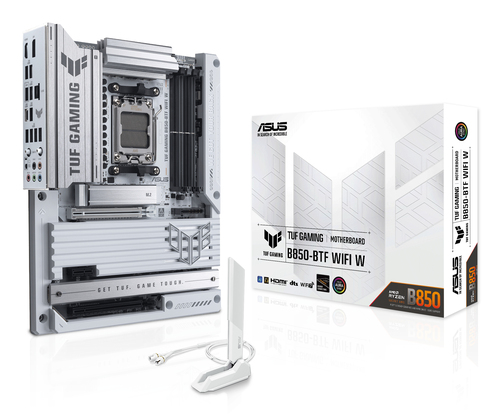

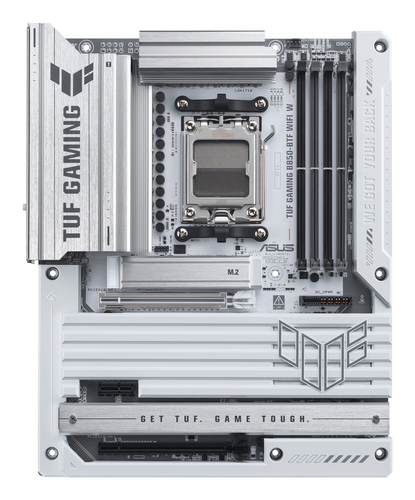

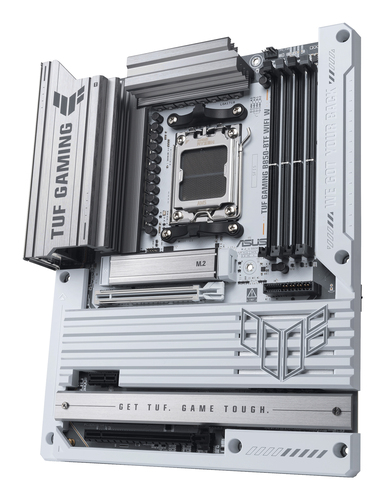

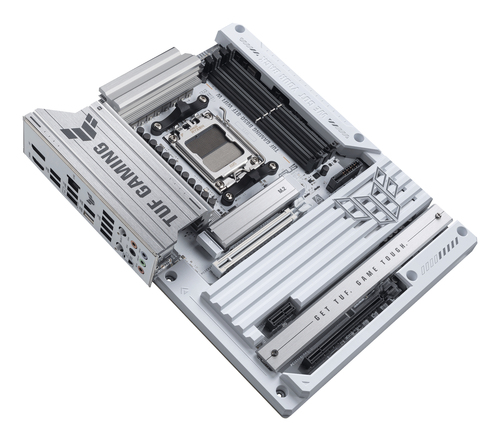

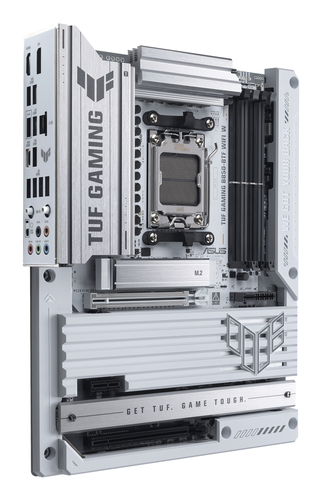

ASUS TUF GAMING B850-BTF WIFI W AMD B850 Socket AM5 ATX
Part number TUF GAMING B850-BTF WIFI W
ASUS TUF GAMING B850-BTF WIFI W AMD B850 ATX MOTHERBOARD
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC ATX AMD B850 Realtek ALC1220P 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 256 Mbit 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Manufacturer ASUS
Part number TUF GAMING B850-BTF WIFI W
Condition New
Category System Components › Motherboards 1GPA category Hardware
Manufacturer MSRP
$289.99
On 1GPA? Sign in to see your contract price.
Stock and final pricing are confirmed by your rep on the quote. Catalog dated September 30, 2026.
Overview
TUF GAMING B850-BTF WIFI W
TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
Processor
Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Supported memory clock speed (max) 8000 MHz Maximum internal memory 256 GB Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of HDDs supported 4 Number of storage drives supported 7 RAID support Yes RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported On-board graphics card No
Internal I/O
USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 1 Number of chassis fan connectors 4 Chassis intrusion connector Yes EPS power connector (8-pin) Yes Number of COM connectors 1 Thunderbolt headers 1 12V power connector Yes Number of water pump connectors 1 RGB LED pin header Yes Number of RGB LED pin headers 3

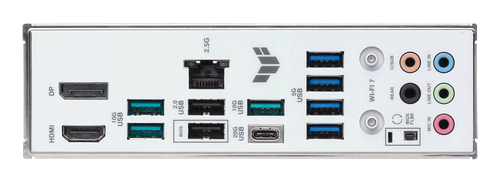

Rear panel I/O ports
USB 2.0 ports quantity 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1 Line-in Yes Microphone in Yes WiFi-AP antenna jack 2
Network
Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Wi-Fi standards Wi-Fi 7 (802.11be) Bluetooth Yes Bluetooth version 5.4
Features
Motherboard chipset AMD B850 Audio chip Realtek ALC1220P Audio output channels 7.1 channels Product colour White Component for PC Motherboard form factor ATX Motherboard chipset family AMD Cooling type Passive Windows operating systems supported Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 3 1st M.2 largest key size 22110 1st M.2 highest PCI Express generation 4.0
BIOS
BIOS type UEFI AMI BIOS memory size 256 Mbit
Packaging data
Package width 353 mm Package depth 273 mm Package height 68 mm Package weight 2.04 kg
Weight & dimensions
Width 305 mm Depth 244 mm Height 57 mm

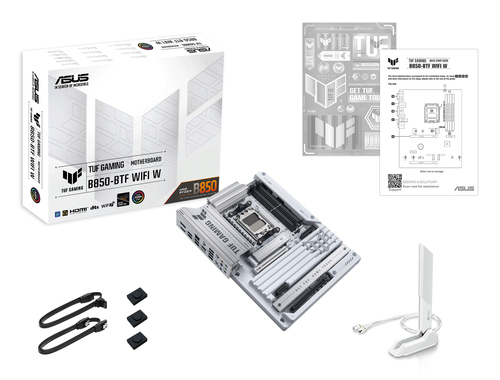

Packaging content
Antenna included Yes
Other features
Weight 1.44 kg
