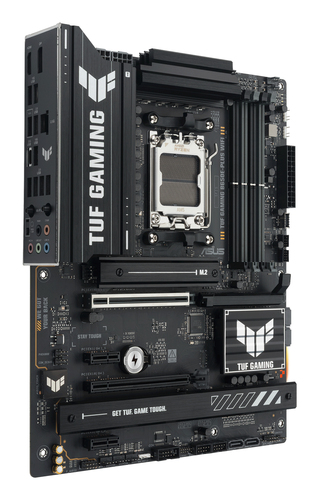

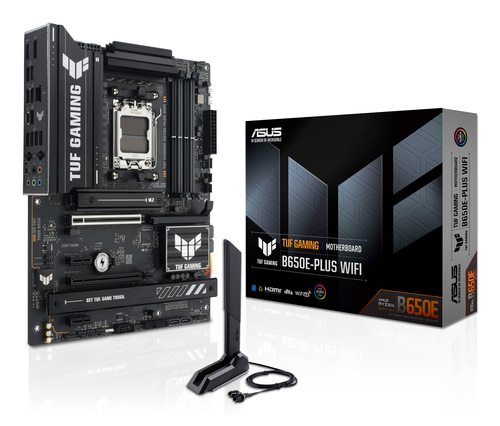

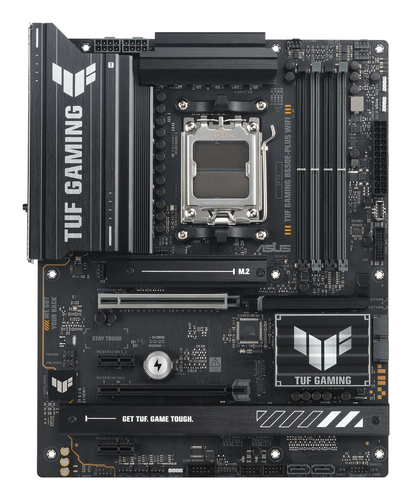

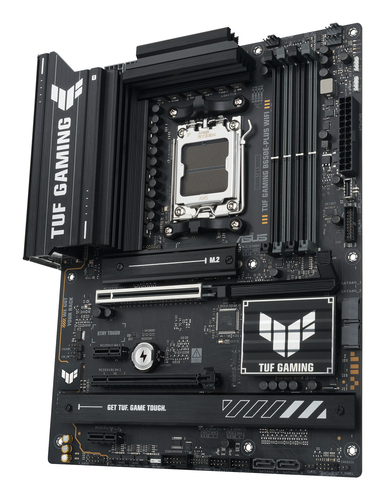

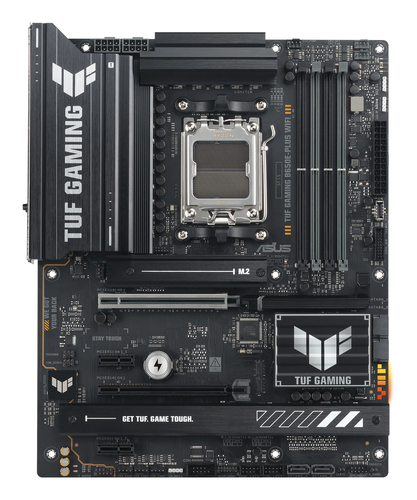

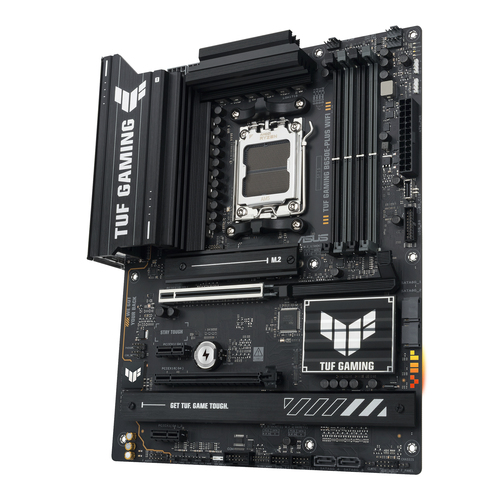

ASUS TUF GAMING B650E-PLUS WIFI
View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8
ASUS

ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX

Part number TUF GAMING B650E-PLUS WIFI

ASUS TUF GAMING B650E-PLUS WIFI AMD B650 ATX MOTHERBOARD12+2+1 80A

  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD B650 Realtek ALC1220P 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
  • BIOS type: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Manufacturer
ASUS
Part number
TUF GAMING B650E-PLUS WIFI
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware

Overview

TUF GAMING B650E-PLUS WIFI

ASUS TUF GAMING B650E-PLUS WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Maximum internal memory256 GB
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0, 1, 5, 10
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
Thunderbolt headers1
12V power connectorYes
Rear panel I/O ports
USB 2.0 ports quantity6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
Line-inYes
Microphone inYes
WiFi-AP antenna jack1
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetAMD B650
Audio chipRealtek ALC1220P
Audio output channels7.1 channels
Product colourBlack
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Cooling typePassive
Windows operating systems supportedWindows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size256 Mbit
Packaging data
Package width353 mm
Package depth273 mm
Package height68 mm
Package weight1.39 kg
Weight & dimensions
Width305 mm
Depth244 mm
Packaging content
Cables includedSATA
Antenna includedYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
