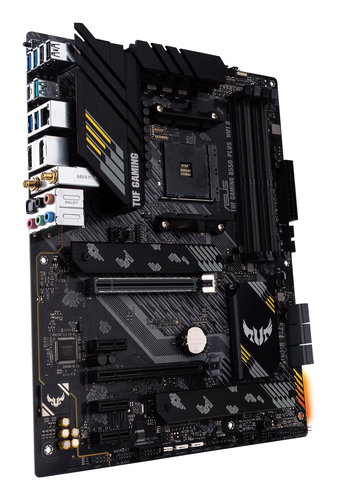

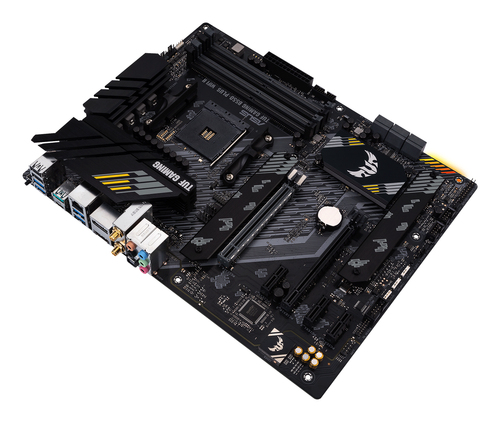

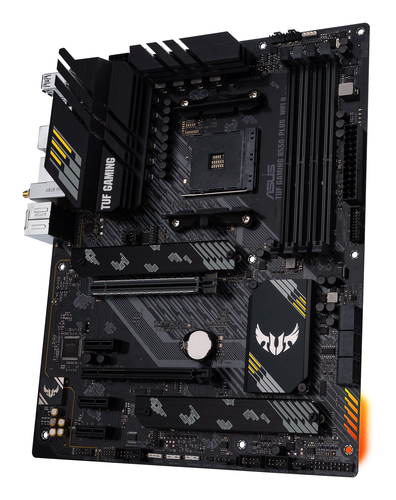

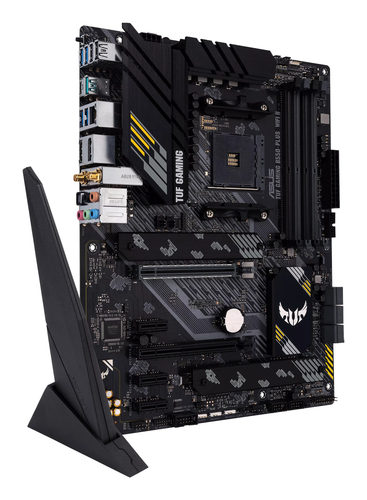

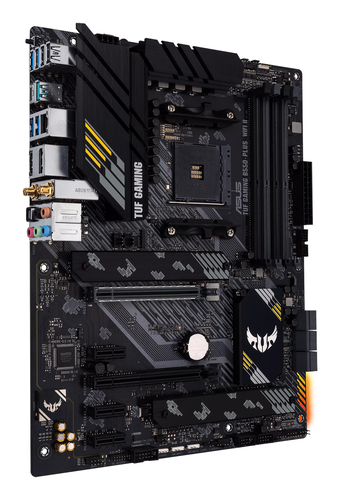

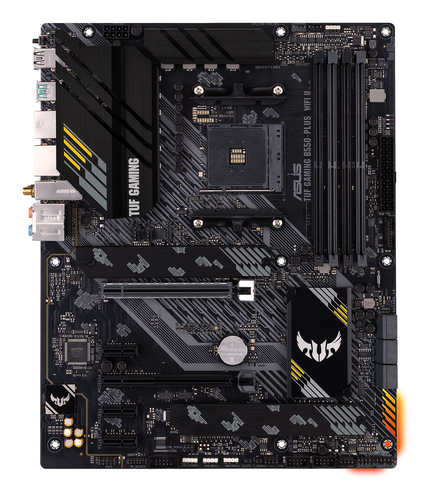

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX
Part number TUF GAMING B550-PLUS WIFI II
ASUS TUF GAMINGB550-PLUSWIFI II AMD AM4 3RD GEN RYZEN ATX PCIE4.
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
- Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
- AI noise-canceling microphone: provides crystal-clear in-game voice communication
- Manufacturer
- ASUS
- Part number
- TUF GAMING B550-PLUS WIFI II
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
DURABLE. STABLE. RELIABLE.
TUF GAMING B550-PLUS WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig.
Power Design
DrMOS
The onboard VRM of TUF GAMING B550-PLUS WIFI II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen™ Processors demand.
Stack Cool 3+
2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
ProCool Socket
ENHANCED 8-PIN CONNETOR
・ Extreme durability
・ Prevent hotspots and connector failure
Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
TUF CAPACITORS
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Cooler by design
1. VRM HEATSINK
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
THERMAL PAD
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
2. M.2 HEATSINK
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
PCIe 4.0 M.2 (up to 64 Gbps)
TUF Gaming B550 series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| Number of displays supported | 2 |
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Thunderbolt headers | 1 |
| RGB LED pin header | Yes |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Motherboard chipset | AMD B550 |
|---|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10, Windows 11 |
| PCI Express x1 (Gen 3.x) slots | 3 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| Harmonized System (HS) code | 84733020 |
|---|
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 75 mm |
| Cables included | SATA |
|---|---|
| Drivers included | Yes |
| Weight | 945 g |
|---|---|

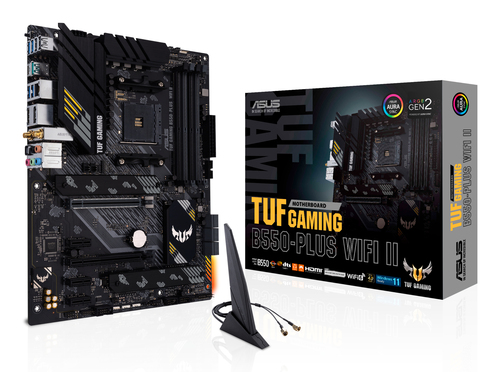

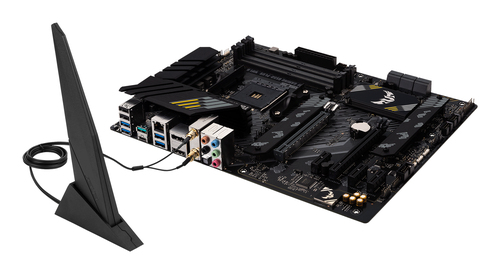

| Packaging content | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
