ASUS

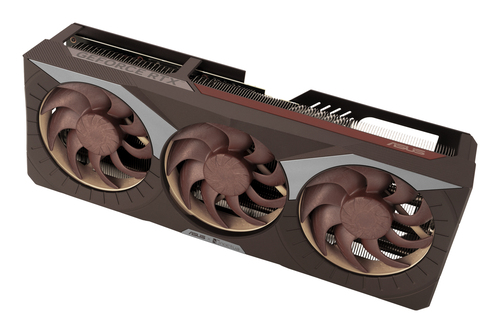

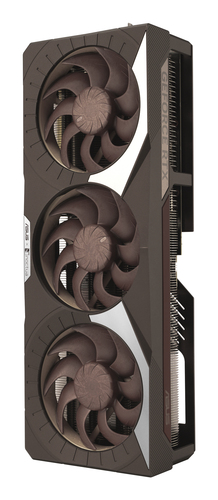

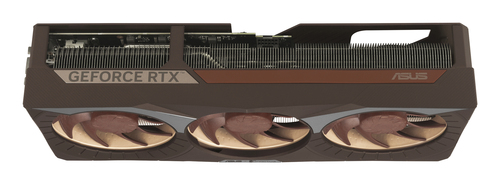

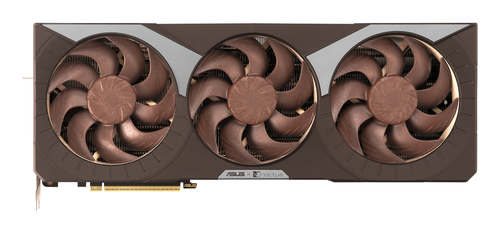

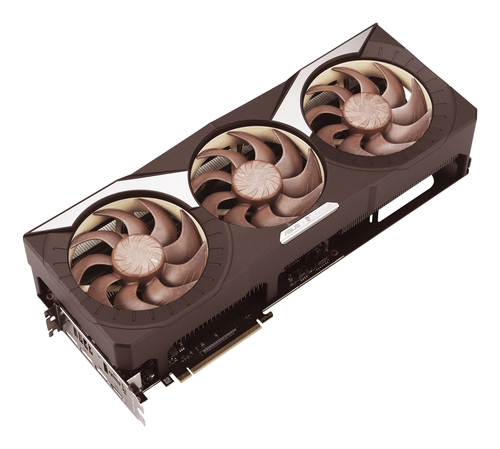

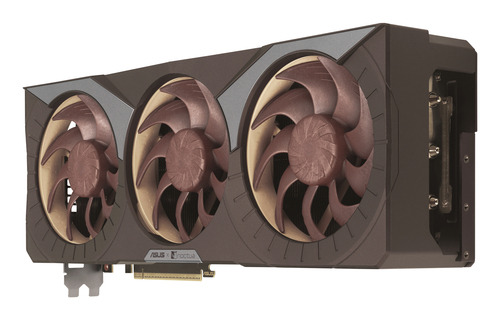

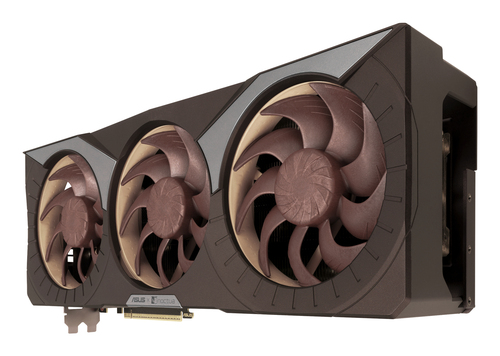

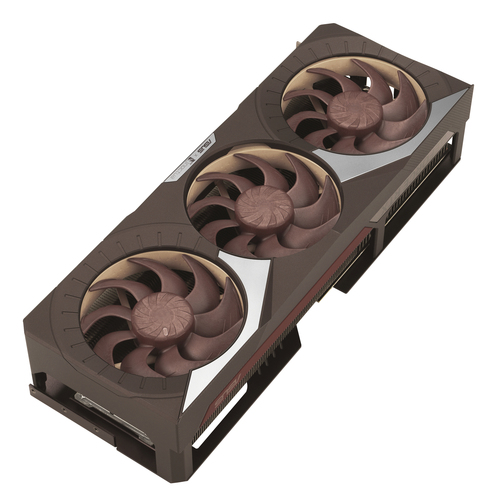

ASUS RTX5080-O16G-NOCTUA NVIDIA GeForce RTX 5080 16 GB GDDR7
Part number RTX5080-O16G-NOCTUA
ASUS AND NOCTUA HAVE TEAMED UP TO REDEFINE THE QUIETEST AIR-COOLED
- AI Performance: 1858 AI TOPS
- OC Edition: 2730 MHz (OC mode)/ 2700 MHz (Default mode)
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Three Noctua NF-A12x25 G2 120mm fans for superior quiet cooling performance
- Optimized vapor chamber efficiently wicks heat into a large fin array
- Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
- 0dB technology lets you enjoy light gaming in relative silence
- Dual BIOS lets you toggle between Quiet and Performance BIOS profiles
- GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring
- Manufacturer
- ASUS
- Part number
- RTX5080-O16G-NOCTUA
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
ASUS and Noctua have teamed up to redefine the quietest air-cooled graphics card in its class with RTX™ 5080
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor boost clock speed | 2700 MHz |
| Processor frequency (OC mode) | 2730 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
|---|---|
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 30 Gbit/s |
| Interface type | PCI Express 5.0 |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NPU performance up to | 1801 TOPs |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 4 |
| Illumination | No |
| SFF ready | No |
| Product colour | Brown, Silver |
| Minimum system power supply | 850 W |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Length | 385 mm |
|---|---|
| Depth | 80 mm |
| Height | 151 mm |
| Package type | Box |
|---|
| Manual | Yes |
|---|
