HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 11
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Manufacturer
ASUS
Part number
ROG STRIX Z890-E GAMING WIFI
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware
Overview

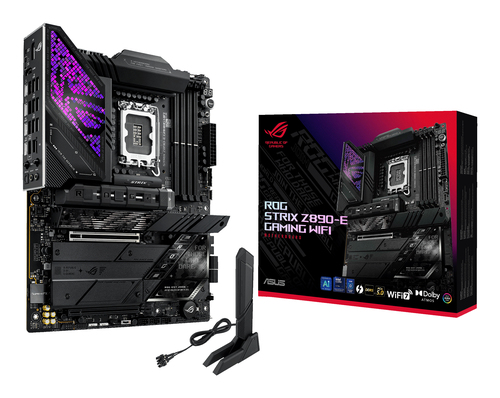

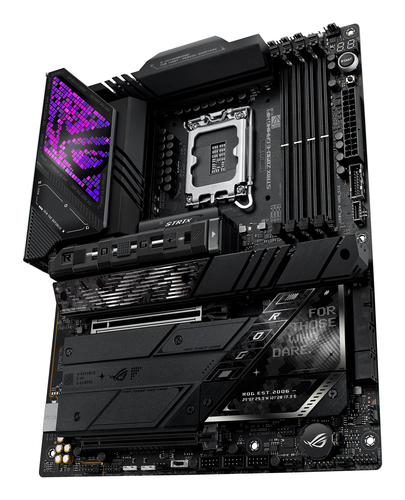

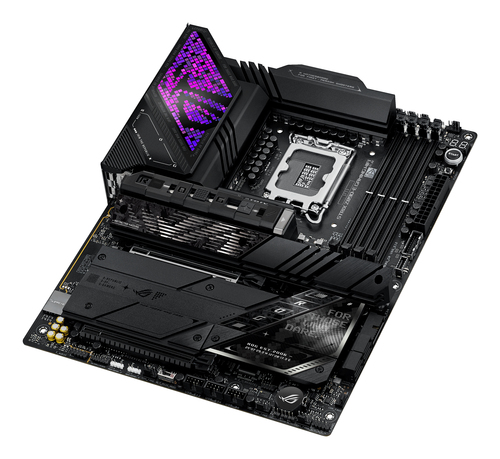

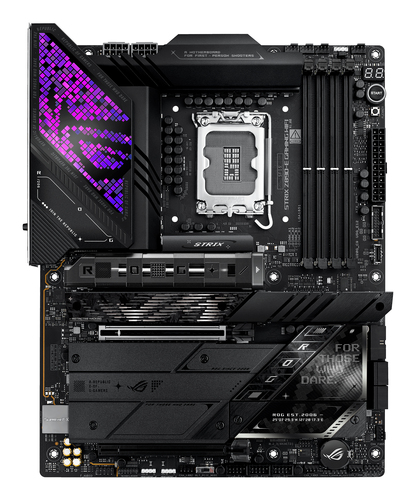

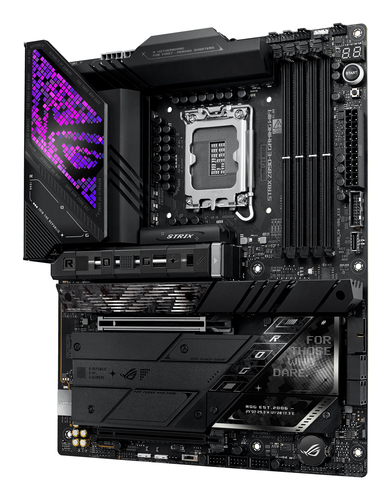

ROG STRIX Z890-E gaming wifi
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8800 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
11
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Thunderbolt headers
1
12V power connector
Yes

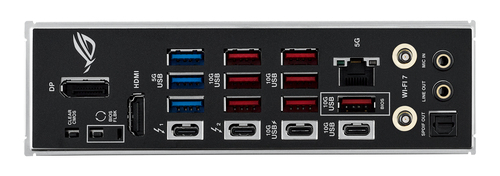

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
USB connector type
USB Type-A, USB Type-C
Network
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset
Intel Z890
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
Product colour
Black
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
7
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Packaging data
Package width
356 mm
Package depth
87 mm
Package height
281 mm
Package weight
2.58 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
