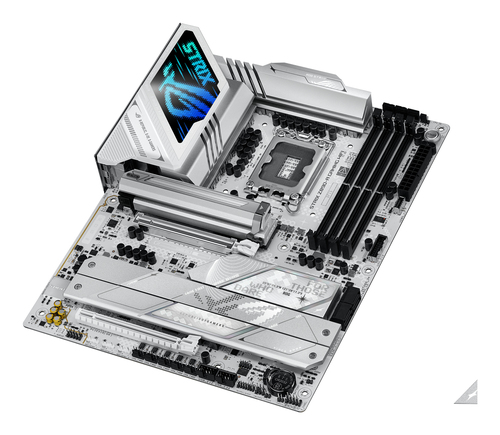

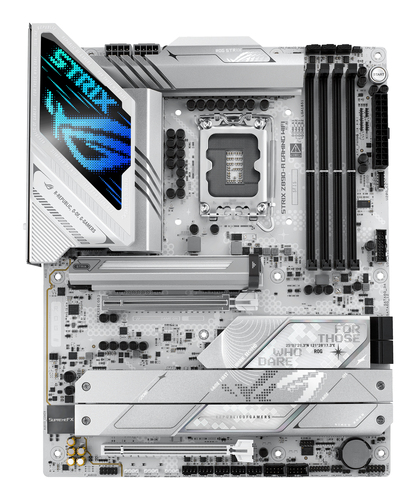

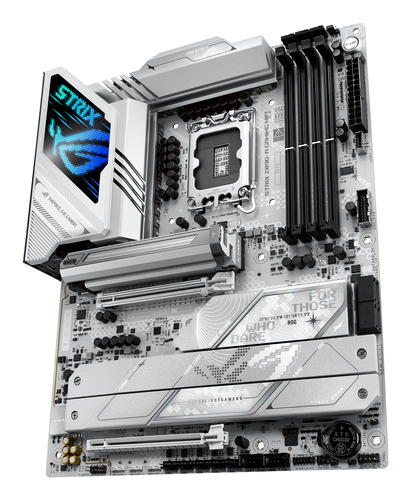

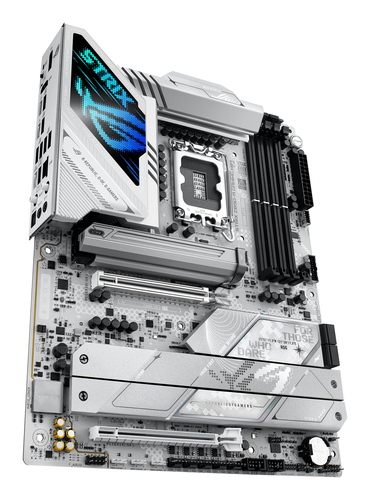

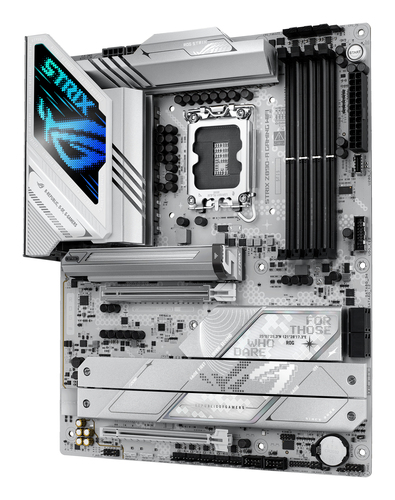

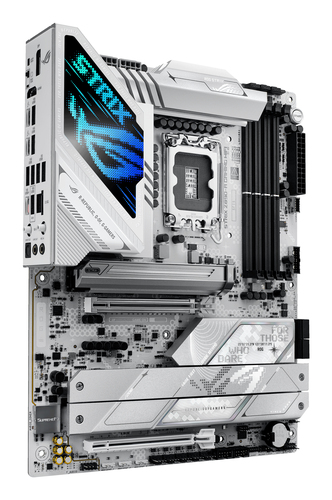

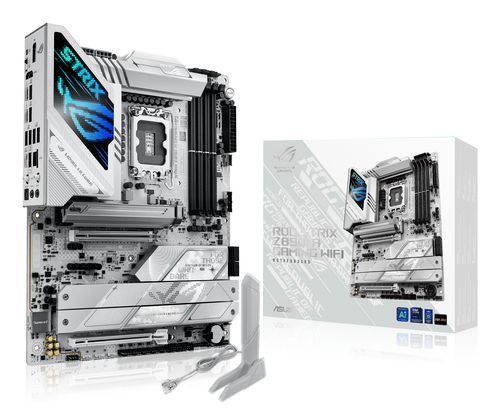

ASUS ROG STRIX Z890-A GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Part number ROG STRIX Z890-A GAMING WIFI
ROG STRIX Z890-A GAMING WIFI
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4080 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
- Manufacturer
- ASUS
- Part number
- ROG STRIX Z890-A GAMING WIFI
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI INTELLIGENCE
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.
Performance
OVERCLOCKING
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
* The overclocking performance may vary depending on the CPU series and motherboard used.
** Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
Performance
MEMORY
DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-A.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FLEX
DIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules.
Power solution
ROG STRIX ULTIMATE POWER DESIGN
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | Intel Z890 |
|---|---|
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Package width | 353 mm |
|---|---|
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.98 kg |
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Cables included | SATA |
|---|
| Quick installation guide | Yes |
|---|---|
| Back-to-BIOS button | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
