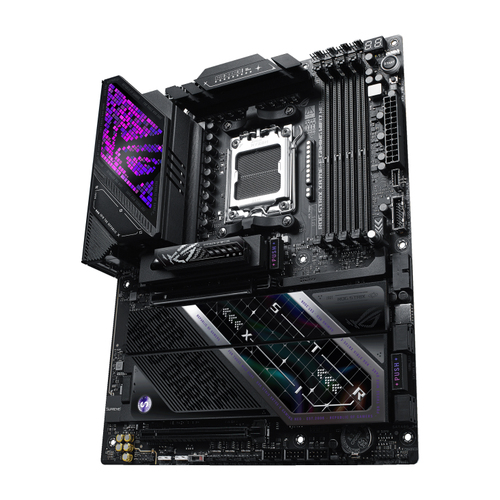

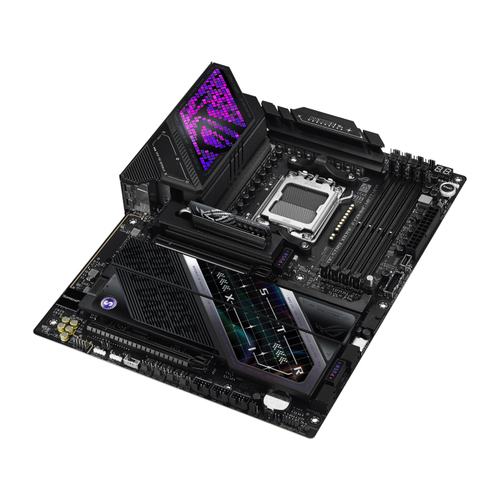

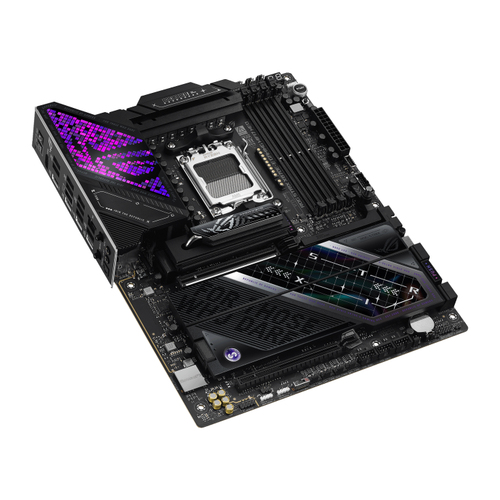

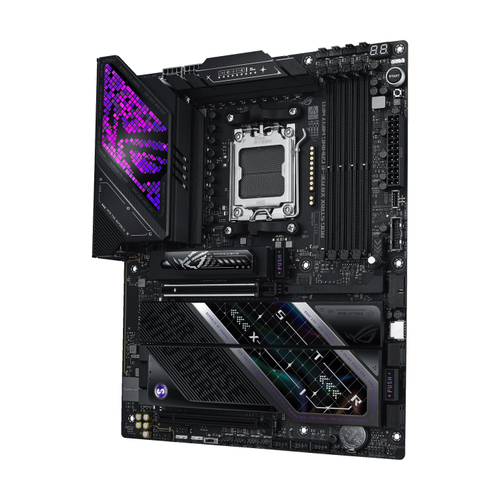

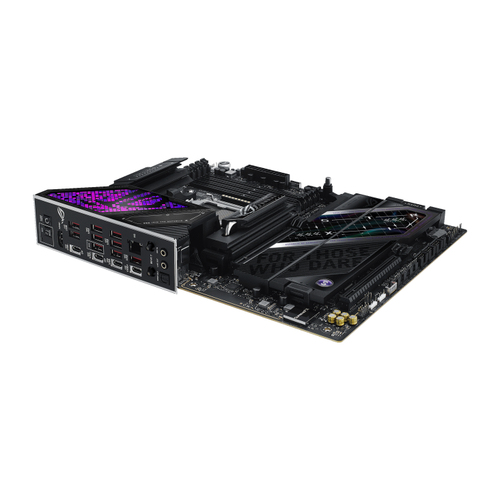

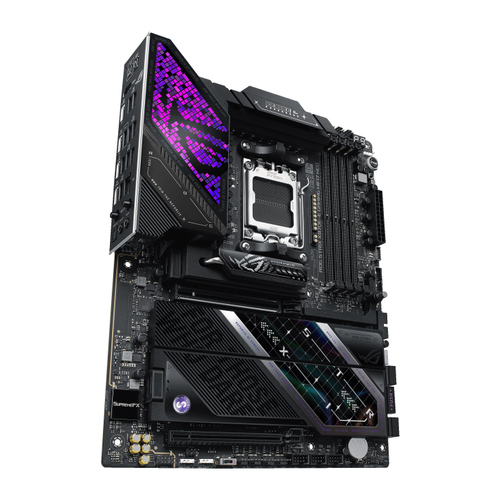

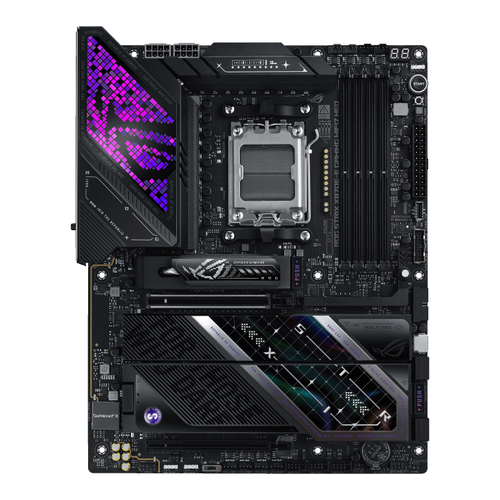

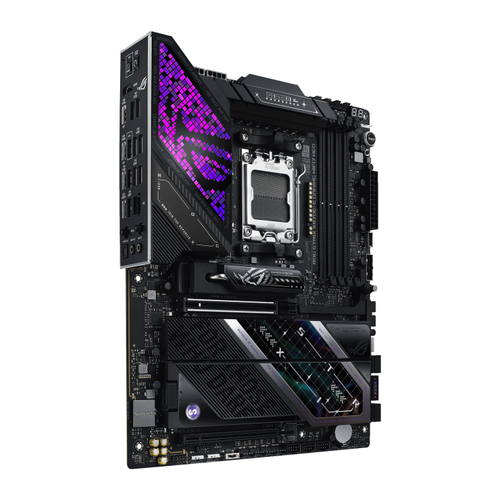

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO motherboard AMD X870E Socket AM5 ATX

Part number ROG STRIX X870E-E GAMING WIFI7 NEO

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD ATX MOTHERBOARD WITH 18+2+2 POWER ST

AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
PC ATX AMD X870E Realtek ALC4080 7.1 channels
DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
HDD & SSD SATA III, M.2 RAID support Number of storage drives supported: 9
BIOS type: UEFI AMI 64 Mbit Clear CMOS button
5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth

Manufacturer: ASUS
Part number: ROG STRIX X870E-E GAMING WIFI7 NEO
Condition: New
Category: System Components › Motherboards
1GPA category: Hardware

Overview

ROG Strix X870E-E Gaming WiFi7 Neo

The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.

Specifications

Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes

Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III, M.2
Number of HDDs supported	4
Number of storage drives supported	9
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics
Parallel processing technology support	Not supported

Internal I/O
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2x2 connectors	2
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	2
Number of chassis fan connectors	5
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
12V power connector	Yes
Number of water pump connectors	1
RGB LED pin header	Yes
Number of RGB LED pin headers	3

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB4 Gen 3x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Microphone in	Yes
S/PDIF out port	Yes
WiFi-AP antenna jack	1

Network
Ethernet LAN	Yes
Ethernet interface type	5 Gigabit Ethernet
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	MediaTek MT7927
Bluetooth	Yes

Features
Motherboard chipset	AMD X870E
Audio chip	Realtek ALC4080
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Cooling type	Passive
Windows operating systems supported	Windows 11

Expansion slots
PCI Express x16 (Gen 4.x) slots	1
Number of M.2 (M) slots	5
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
5th M.2 largest key size	2280
5th M.2 highest PCI Express generation	4.0

BIOS
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Clear CMOS button	Yes

Weight & dimensions
Width	305 mm
Depth	244 mm

Packaging content
Cables included	SATA
Antenna included	Yes
Screws included	Yes

Other features
Weight	1.9 kg
