PC mini ITX Intel B860 Realtek ALC1220P 7.1 channels
DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit Clear CMOS button
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Manufacturer
ASUS
Part number
ROG STRIX B860-I GAMING WIFI
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware
Overview

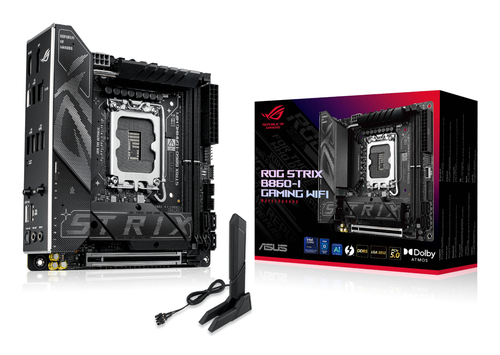

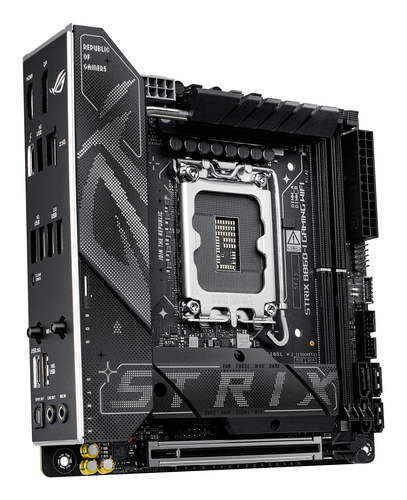

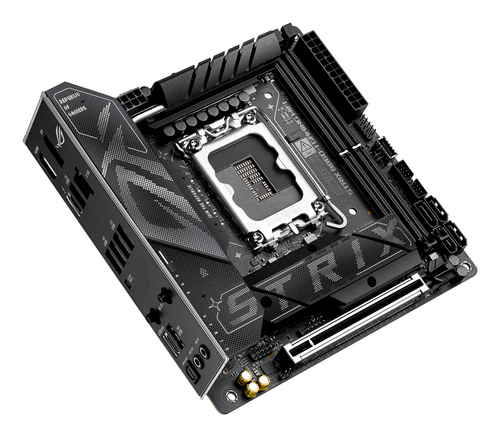

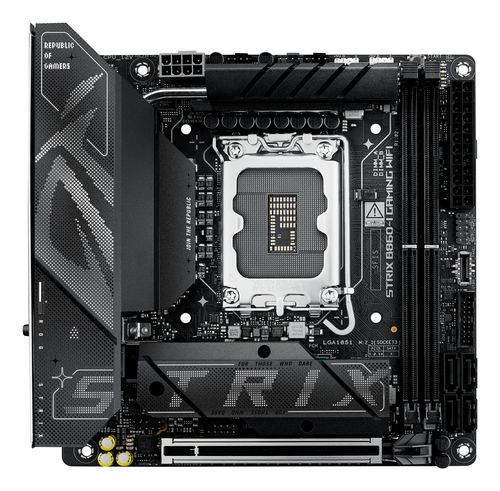

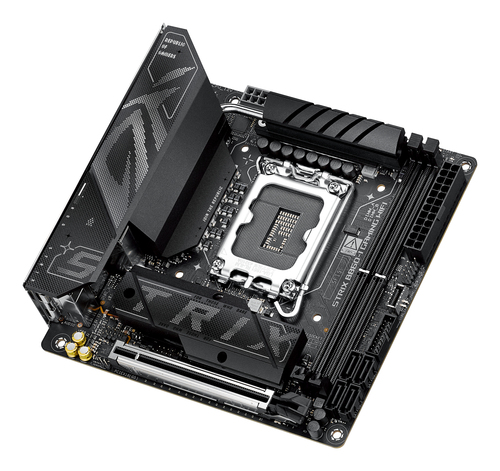

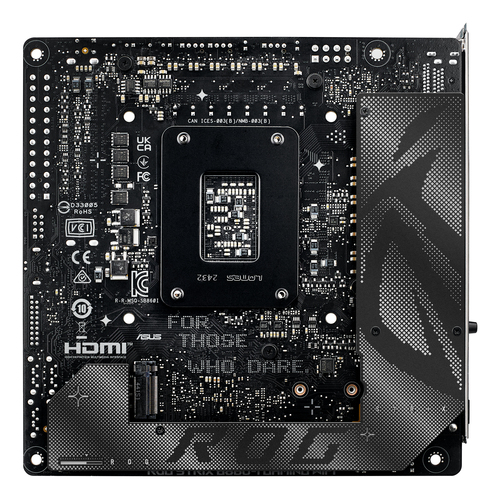

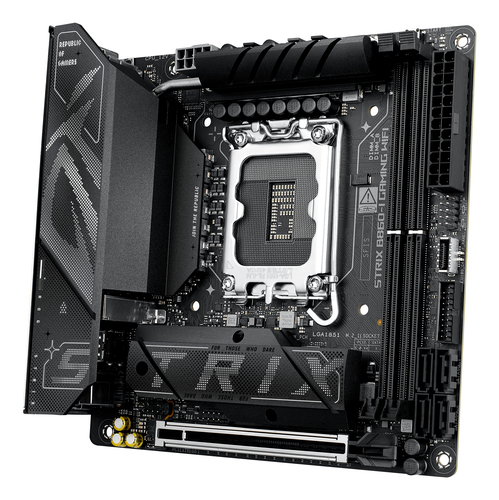

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
9066 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset
Intel B860
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Product colour
Multicolour
Component for
PC
Motherboard form factor
mini ITX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Packaging data
Package width
228 mm
Package depth
187 mm
Package height
96 mm
Package weight
1.47 kg
Weight & dimensions
Width
170 mm
Depth
170 mm
Other features
Weight
812.6 g
