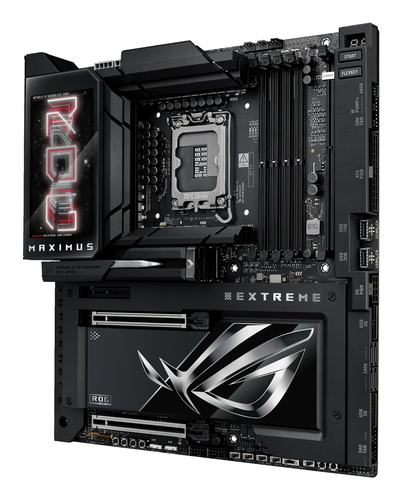

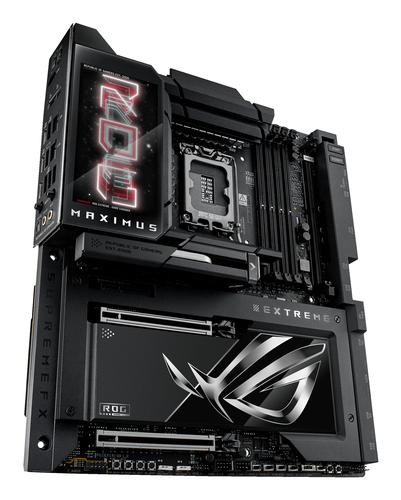

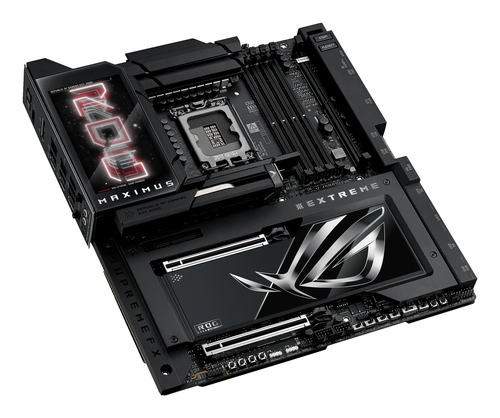

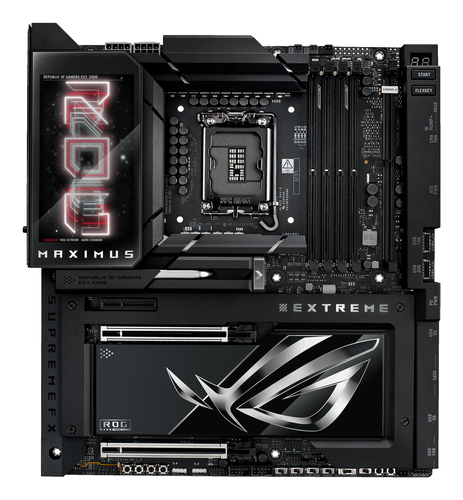

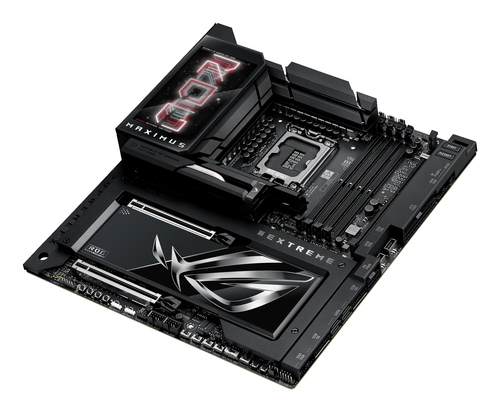

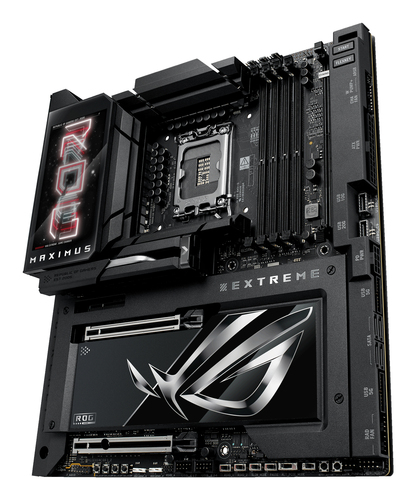

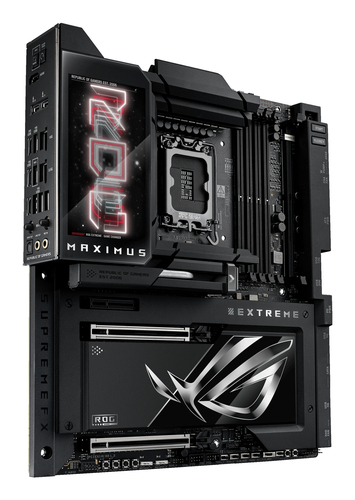

The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8800 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset
Intel Z890
Audio chip
Realtek ALC4082
Audio output channels
7.1 channels
Product colour
Black
Component for
PC
Motherboard form factor
Extended ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
6
BIOS
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Clear CMOS button
Yes
Packaging data
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.73 kg
Weight & dimensions
Width
305 mm
Depth
277 mm
