ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Socket AM5 ATX
Part number ROG CROSSHAIR X870E HERO BTF
ROG CROSSHAIR X870E HERO BTF AMD X870E ATX BOARD WITH HIDDEN
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC ATX AMD X870E 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9 BIOS type: UEFI AMI 256 Mbit Clear CMOS button 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Manufacturer ASUS
Part number ROG CROSSHAIR X870E HERO BTF
Term Per Ingram SKU Z49407 Condition New
Category System Components › Motherboards 1GPA category Hardware
Manufacturer MSRP
$759.99
On 1GPA? Sign in to see your contract price.
Stock and final pricing are confirmed by your rep on the quote. Catalog dated September 30, 2026.
Overview
ROG Crosshair X870E HERO BTF
The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.
Specifications
Processor
Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Supported memory clock speed (max) 8600 MHz Maximum internal memory 256 GB Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of HDDs supported 4 Number of storage drives supported 9 RAID support Yes RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported On-board graphics card No
Internal I/O
USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 USB 3.2 Gen 2x2 connectors 2 Number of SATA III connectors 4 Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 1 Number of chassis fan connectors 4 EPS power connector (8-pin) Yes 12V power connector Yes

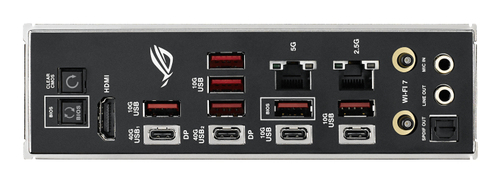

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2 USB4 Gen 3x2 ports quantity 2 Ethernet LAN (RJ-45) ports 2 HDMI ports quantity 1 Microphone in Yes S/PDIF out port Yes
Network
Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 7 (802.11be) Bluetooth Yes Bluetooth version 5.4
Features
Motherboard chipset AMD X870E Audio output channels 7.1 channels Product colour Multicolour Component for PC Motherboard form factor ATX Motherboard chipset family AMD Windows operating systems supported Windows 11
Expansion slots
PCI Express x4 (Gen 4.x) slots 1 PCI Express x16 (Gen 5.x) slots 1 Number of M.2 (M) slots 5
BIOS
BIOS type UEFI AMI BIOS memory size 256 Mbit Clear CMOS button Yes
Packaging data
Package width 366 mm Package depth 308 mm Package height 110 mm Package weight 4.47 kg
Weight & dimensions
Width 305 mm Depth 244 mm Height 57 mm
Other features
Weight 2.62 kg
