ASUS ROG CROSSHAIR X870E EDITION 20 AMD X870E Socket AM5 ATX
Part number ROG CROSSHAIR X870E EDITION 20
ASUS ROG CROSSHAIR X870E EDITION 20 AM5 E-ATX MOTHERBOARD, DDR5, PCIE 5.0, DIMM
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, PCI Express 5.0, PCI Express 4.0, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
- Manufacturer
- ASUS
- Part number
- ROG CROSSHAIR X870E EDITION 20
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Innovate. Perform. Dominate.

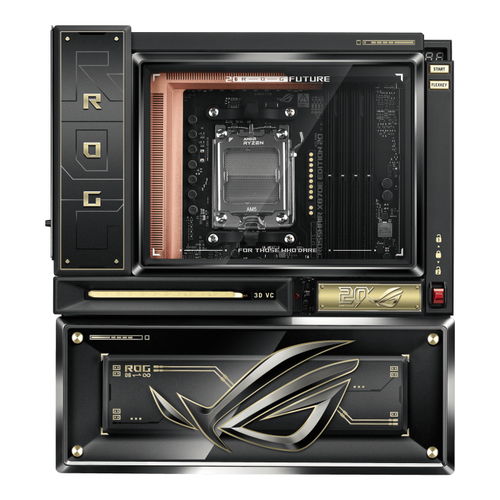

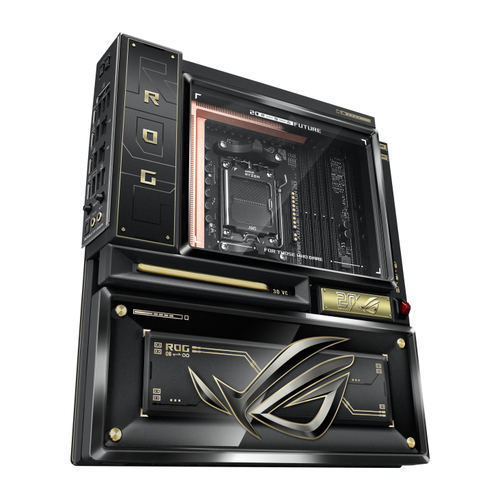

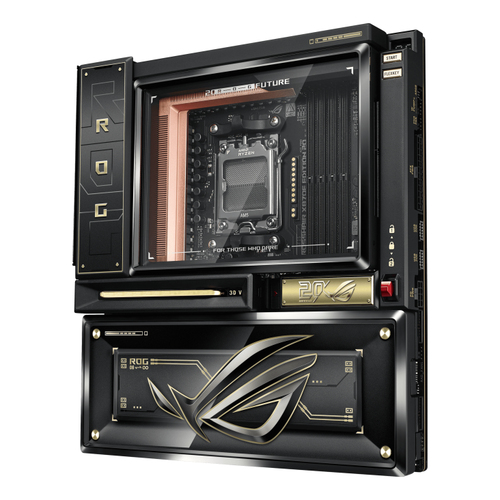

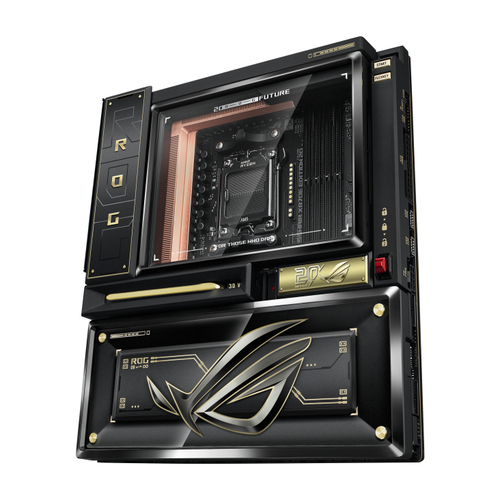

Created to celebrate ROG's 20th anniversary, the ROG Crosshair X870E Edition 20 combines iconic design, exclusive collectability, and flagship performance in one exceptional platform.

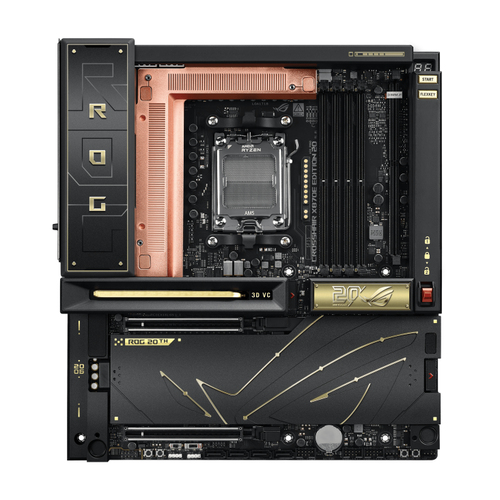

Equipped with robust 24+2+2 power stages, up to nine M.2 slots, and a full-copper VRM thermal solution, it delivers uncompromising stability and cooling for extreme performance.

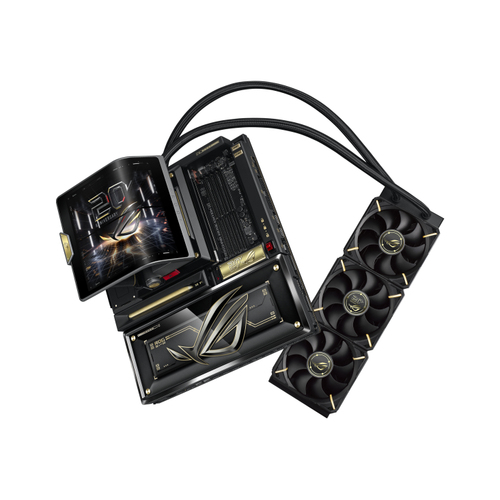

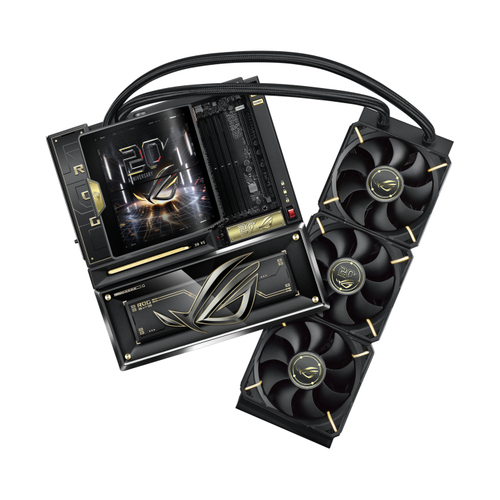

Paired exclusively with the ROG RYUJIN 360 EDITION 20, featuring the Asetek EMMA Gen10 V3Rx pump and a high-performance cold plate crafted from 99.95% high-purity copper, designed to simultaneously cool both the CPU and critical VRM components, this ultimate combination pushes thermal performance even further.
Completing the experience is the Swivel Dual 6.67" AMOLED LCD with ASUS Infohub control, transforming the system into a synchronized showcase of performance and immersive visuals.
Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 9600 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, PCI Express 5.0, PCI Express 4.0, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| USB 2.0 connectors | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 3 |
| 12V power connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPort version | 1.4a |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD X870E |
|---|---|
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | liquid |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 5.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 5 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| BIOS flashback button | Yes |
| Width | 305 mm |
|---|---|
| Depth | 277 mm |
| Cables included | SATA |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
