7680 x 4320 pixels 512 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 2 DisplayPorts quantity: 3
OpenGL version: 4.6
1x 16-pin
Manufacturer
ASUS
Part number
ROG-ASTRAL-RTX5090-O32G-GAMING
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview
The Final Frontier

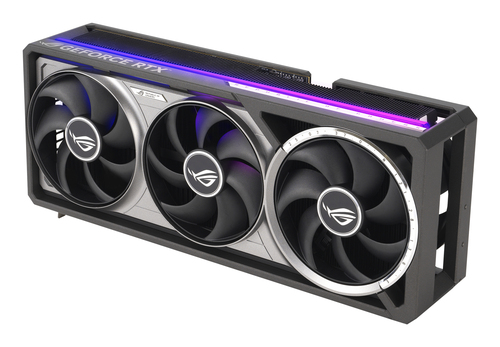

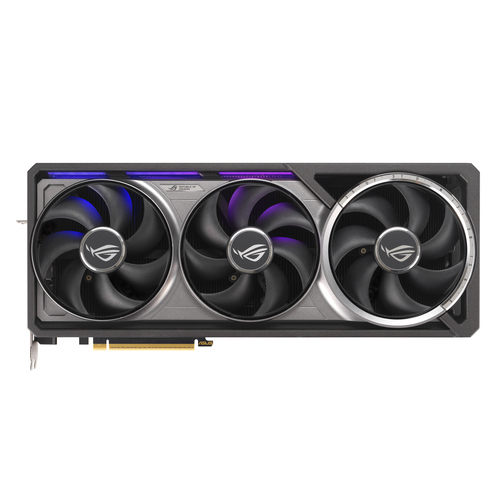

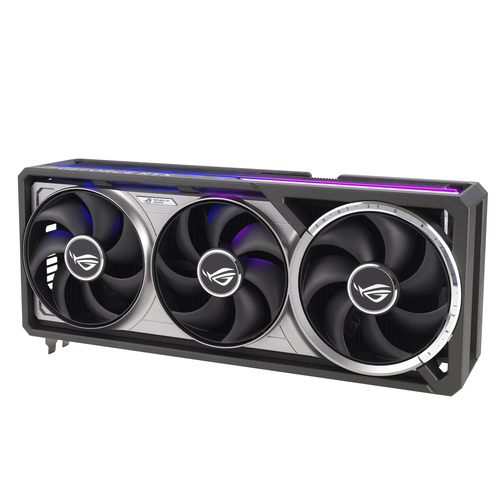

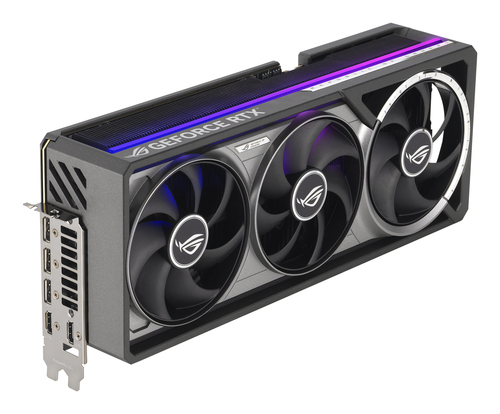

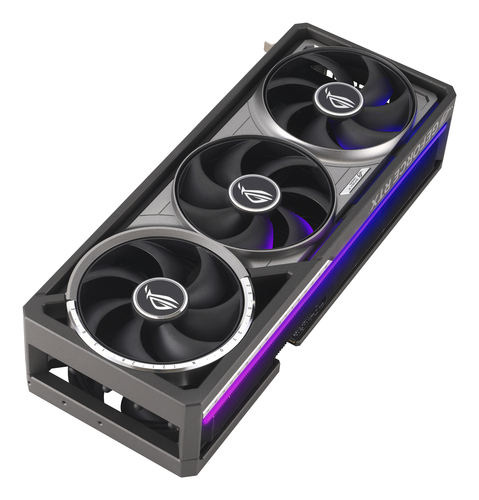

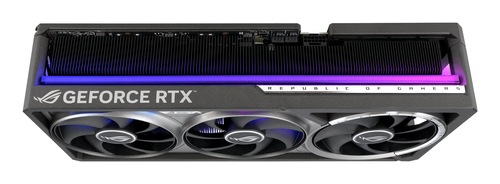

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.
Specifications
Processor
CUDA
Yes
CUDA cores
21760
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5090
Processor boost clock speed
2580 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Maximum displays per videocard
4
Memory
Discrete graphics card memory
32 GB
Graphics card memory type
GDDR7
Memory bus
512 bit
Data transfer rate
28 Gbit/s
Ports & interfaces
Interface type
PCI Express 5.0
HDMI ports quantity
2
HDMI version
2.1b
DisplayPorts quantity
3
DisplayPort version
2.1b
Performance
OpenGL version
4.6
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
NVIDIA G-SYNC
Yes
NPU performance up to
3352 TOPs
Overclocked (OC) edition
Yes
Design
Cooling type
Active
Number of fans
4 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Bracket height
Full-Height (FH)
Number of slots
3.8
Illumination
Yes
Illumination colour
Multi
SFF ready
No
Product colour
Multicolour
Power
Minimum system power supply
1000 W
Supplementary power connectors
1x 16-pin
Weight & dimensions
Weight
3.01 kg
Length
357.6 mm
Depth
76 mm
Height
149.3 mm
Packaging data
Package width
420 mm
Package depth
126 mm
Package height
226 mm
Package weight
4.45 kg
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
