ASUS NUC 16 Pro RNUC16GDKV56000U PC/workstation barebone Black 335 FCBGA2540
Part number RNUC16GDKV56000U
ASUS NUC 16 PRO BAREBONE MINI P INTEL ULTRA 5 335 VPRO DUAL CHANNEL
AI-accelerated hybrid compute with Intel® Core™, Arc™ GPU and NPU 5, delivering up to 180 TOPS for real-time Edge AI
Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
Intel vPro® (select SKUs), fTPM, and ASUS management tools enable hardware-level security, remote monitoring, and fleet control

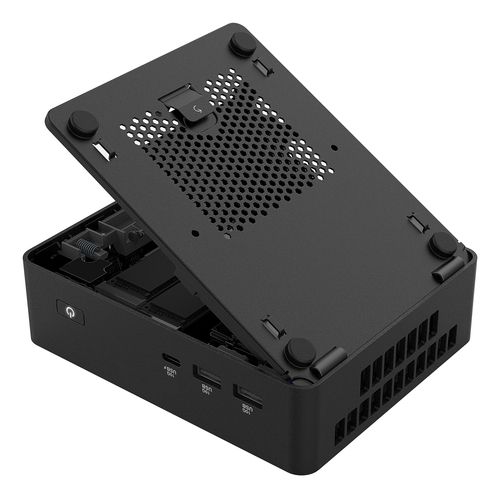

Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
Manufacturer
ASUS
Part number
RNUC16GDKV56000U
Condition
New
Category
Computer Systems › Barebones Systems
1GPA category
Hardware
Overview
Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel® Core™ Ultra (Series 3)
Processor model
335
Processor cores
8
Processor threads
8
Processor boost frequency
4.6 GHz
Performance cores
4
Performance-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.2 GHz
Efficient-core base frequency
1.6 GHz
Built-in processor
Yes
Processor cache
12 MB
Processor cache type
Smart Cache
Memory
Internal memory installed
No
Memory slots type
SO-DIMM
Number of memory slots
2
Maximum internal memory
128 GB
Supported memory types
DDR5-SDRAM, LPDDR5X-SDRAM
Storage
Storage drives installed
No
Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
NVMe
Yes
Maximum storage capacity
8 TB
Graphics
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® Graphics
Performance
Processor socket
FCBGA2540
Audio
Built-in speaker(s)
No
Network
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE211
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
6.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
2
HDMI version
2.1
Ethernet LAN (RJ-45) ports
2
Thunderbolt 4 ports quantity
2
DC-in jack
Yes
Design
Product colour
Black
Cooling type
Active
Cable lock slot
Yes
Cable lock slot type
Kensington
Product type
Mini PC barebone
Power
Power supply type
External AC adapter
Weight & dimensions
Width
144 mm
Depth
117 mm
Height
42 mm
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
