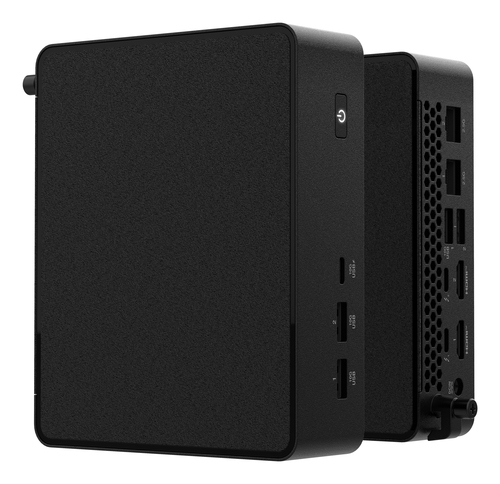

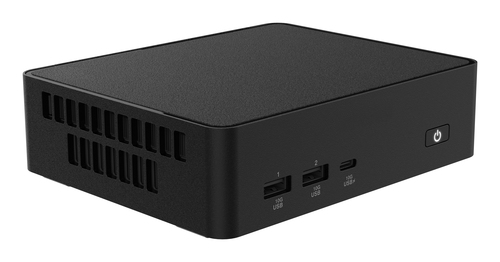

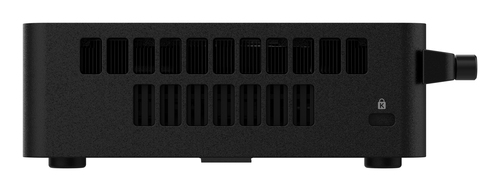

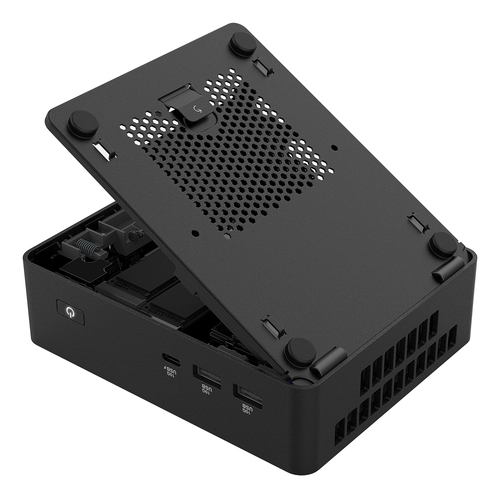

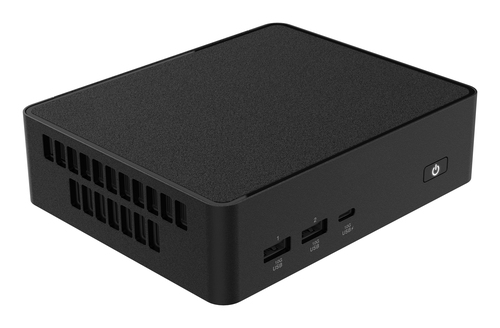

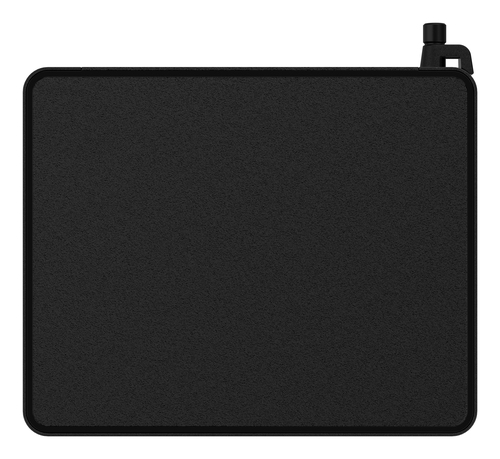

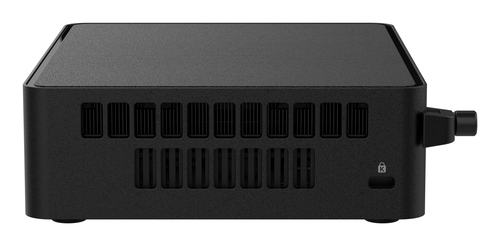

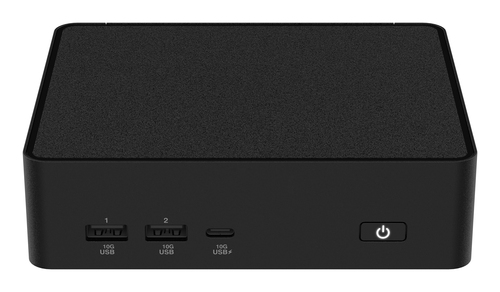

ASUS NUC RNUC16GDKU5663NU Copilot+ PC Intel Core Ultra 5 325 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number RNUC16GDKU5663NU
ASUS NUC 16 PRO FULL SYS MINI P INTEL SERIES 3 CORE ULTRA 5 325 16G
Windows 11 Pro 64-bit
Intel Core Ultra 5 325 (12MB Cache)
16GB (5600MHz) DDR5-SDRAM & 512GB SSD
Manufacturer
ASUS
Part number
RNUC16GDKU5663NU
Condition
New
Category
Computer Systems › Barebones Systems
1GPA category
Hardware
Overview
Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel® Core™ Ultra (Series 3)
Processor model
325
Processor cores
8
Processor threads
8
Processor boost frequency
4.5 GHz
Performance cores
4
Performance-core Max Turbo Frequency
4.5 GHz
Performance-core base frequency
2.1 GHz
Efficient-core base frequency
1.6 GHz
Processor cache
12 MB
Processor cache type
Smart Cache
Processor socket
FCBGA2540
Processor base power
25 W
Maximum turbo power
55 W
Neural processor unit (NPU)
Copilot+ PC
Yes
Neural processor unit (NPU)
Intel AI Boost
NPU performance up to
47 TOPs
GPU performance up to
40 TOPs
Memory
Internal memory
16 GB
Maximum internal memory
128 GB
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Performance
Market positioning
Performance
Product type
Mini PC
Built-in speaker(s)
No
Network
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
LAN controller
Intel I226-V
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 7 BE211
Bluetooth
Yes
Bluetooth version
6.0
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
HDMI ports quantity
2
HDMI version
2.1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
Power supply
120 W
Design
Chassis type
Mini PC
Colour name
Black
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Software
Operating system architecture
64-bit
Operating system installed
Windows 11 Pro
Display
Display included
No
Weight & dimensions
Width
144 mm
Depth
117 mm
Height
42 mm
Weight
910 g
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
