Overview
Gaming Redefined
Power Meets Precision

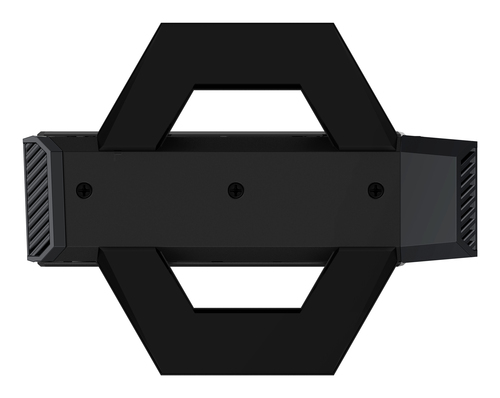

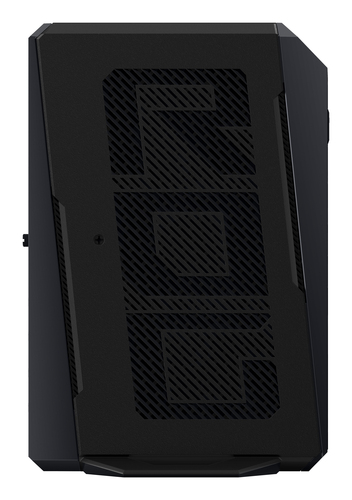

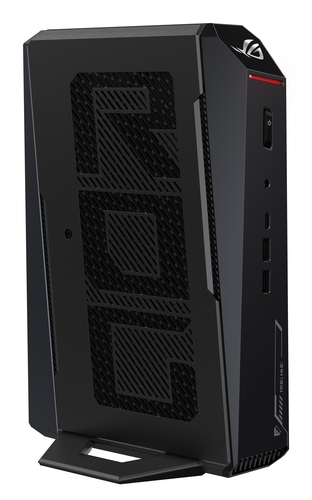

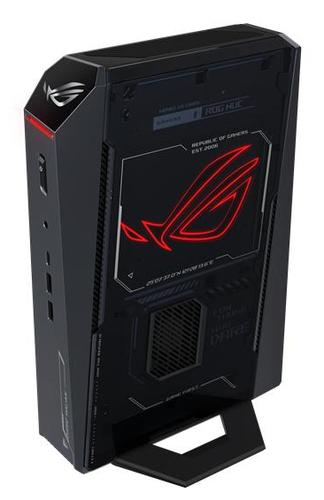

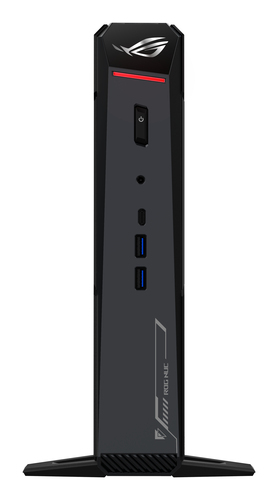

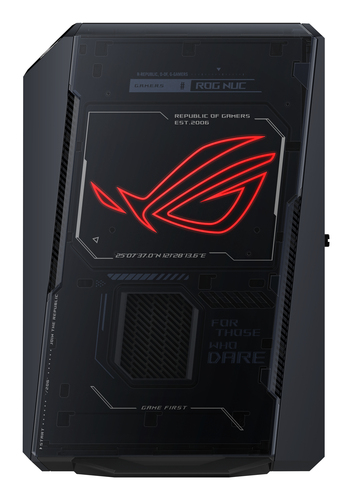

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra 9 processors (Series 2) and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for five 4K displays, this compact powerhouse delivers unprecedented performance.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 9 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 275HX |
|---|
| Processor cores | 24 |
|---|
| Processor threads | 24 |
|---|
| Processor boost frequency | 5.4 GHz |
|---|
| Performance cores | 8 |
|---|
| Efficient cores | 16 |
|---|
| Performance-core Max Turbo Frequency | 5.4 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4.6 GHz |
|---|
| Performance-core base frequency | 2.7 GHz |
|---|
| Efficient-core base frequency | 2.1 GHz |
|---|
| Processor cache | 36 MB |
|---|
| Processor base power | 55 W |
|---|
| Maximum turbo power | 160 W |
|---|
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|---|
| Total processor performance up to | 36 TOPs |
|---|
| NPU performance up to | 13 TOPs |
|---|
| GPU performance up to | 8 TOPs |
|---|
Memory
| Internal memory | 32 GB |
|---|
| Maximum internal memory | 96 GB |
|---|
| Internal memory type | DDR5-SDRAM |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Memory clock speed | 6400 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
Storage
| Total storage capacity | 1 TB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 1 TB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 1 TB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
Graphics
| Discrete graphics card | Yes |
|---|
| Discrete GPU manufacturer | NVIDIA |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | NVIDIA GeForce RTX 5070 |
|---|
| Discrete graphics memory type | GDDR7 |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® Graphics |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
Performance
| Market positioning | Gaming |
|---|
| Product type | Mini PC |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 2500 Mbit/s |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller manufacturer | Intel |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE200 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|

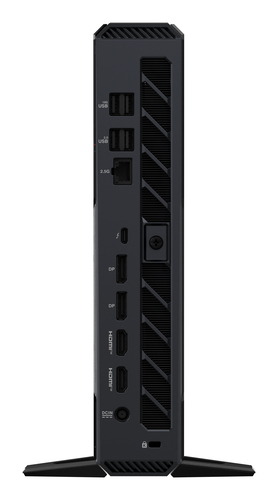

Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 2.1 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | Mini PC |
|---|
| Colour name | Black |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product colour | Black |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system installed | Windows 11 Home |
|---|
Display
| Display included | No |
|---|
Weight & dimensions
| Width | 282.4 mm |
|---|
| Depth | 187.7 mm |
|---|
| Height | 56.5 mm |
|---|
| Weight | 3.12 kg |
|---|
Packaging content
| Cables included | Power |
|---|
