Overview
Power Ahead. Maximize Efficiency.

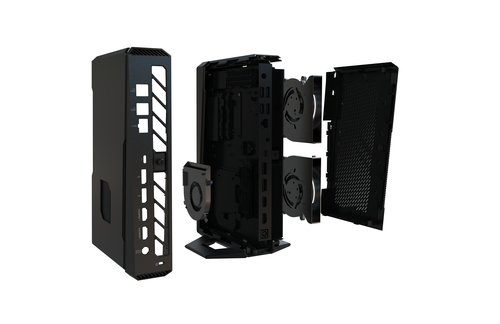

Packing an Intel® Core™ Ultra 9 / 7 processor (Series 2) and next-gen NVIDIA® GeForce RTX™ 5070 / 5060 laptop GPU into a sleek 3-liter chassis, ASUS NUC 15 Performance ensures smooth multitasking for business and creative pursuits. This exceptional mini PC allows for effortless upgrades and includes advanced cooling features to handle the most demanding tasks, along with Intel Killer™ Wi-Fi 7 for ultrafast connectivity. NUC 15 Performance offers power and efficiency in a sophisticated package that’s ready for any environment
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 7 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 255HX |
|---|
| Processor cores | 20 |
|---|
| Processor threads | 20 |
|---|
| Processor boost frequency | 5.2 GHz |
|---|
| Performance cores | 8 |
|---|
| Efficient cores | 12 |
|---|
| Performance-core Max Turbo Frequency | 5.2 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4.5 GHz |
|---|
| Performance-core base frequency | 2.4 GHz |
|---|
| Efficient-core base frequency | 1.8 GHz |
|---|
| Built-in processor | Yes |
|---|
| Processor cache | 30 MB |
|---|
Memory
| Internal memory installed | No |
|---|
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Supported memory clock speeds | 6400 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
Storage
| Storage drives installed | No |
|---|
| Supported storage drive types | SSD |
|---|
| Storage drive sizes supported | M.2 |
|---|
| SSD form factor | M.2 |
|---|
| NVMe | Yes |
|---|
| Maximum storage capacity | 2 TB |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| Graphics card family | Intel, NVIDIA |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
| Number of displays supported | 5 |
|---|
Performance
| Audio chip | Realtek ALC3251 |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE200 |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.2 |
|---|

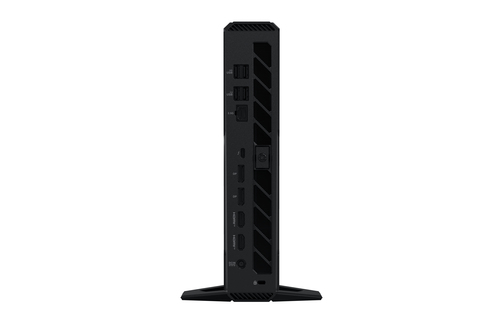

Ports & interfaces
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 2.1 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | 3L sized PC |
|---|
| Product colour | Black |
|---|
| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product type | Mini PC barebone |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 330 W |
|---|
| AC adapter output voltage | 19.5 V |
|---|
| AC adapter output current | 16.9 A |
|---|
Weight & dimensions
| Width | 282.4 mm |
|---|
| Depth | 187.7 mm |
|---|
| Height | 56.5 mm |
|---|
| Weight | 3.12 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
