Overview

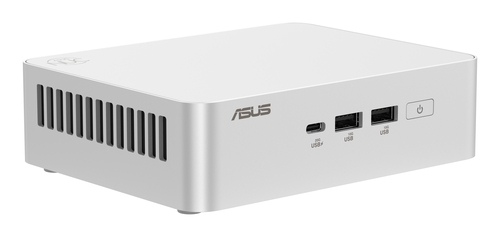

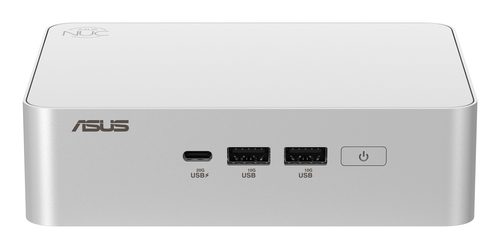

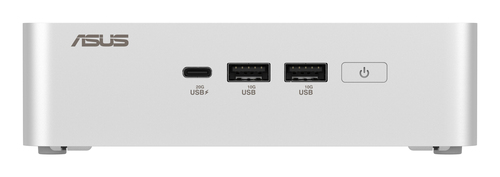

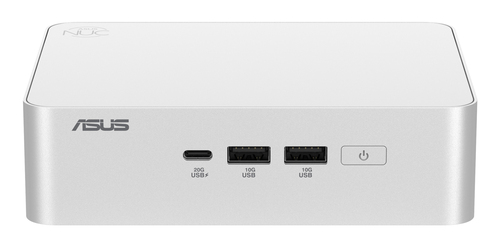

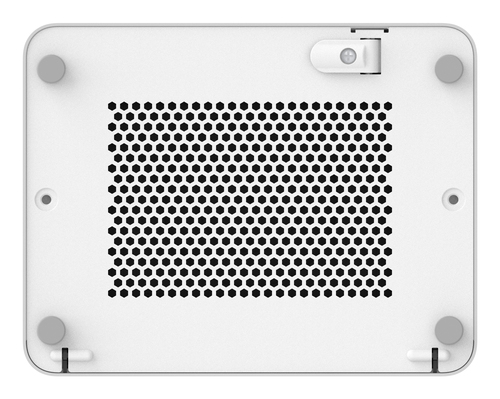

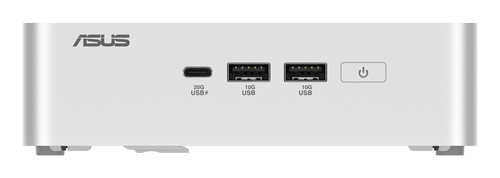

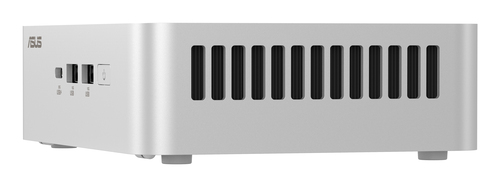

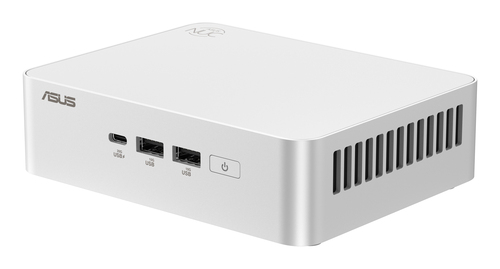

ASUS NUC 15 Pro+
Unleash Ultra Power, Embrace Intelligence
ASUS NUC 15 Pro+ offers a perfect blend of cutting-edge performance and sophisticated design. Powered by the latest-generation Intel® Core™ Ultra 9 processor (Series 2) and Intel Arc™ graphics, NUC 15 Pro+ delivers unparalleled speed and stunning visuals, all in a sleek and compact metal chassis.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 9 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 285H |
|---|
| Processor cores | 16 |
|---|
| Processor threads | 16 |
|---|
| Processor boost frequency | 5.4 GHz |
|---|
| Performance cores | 6 |
|---|
| Efficient cores | 8 |
|---|
| Low Power Efficient-cores | 2 |
|---|
| Performance-core Max Turbo Frequency | 5.4 GHz |
|---|
| Efficient-core Max Turbo Frequency | 4.5 GHz |
|---|
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
|---|
| Performance-core base frequency | 2.9 GHz |
|---|
| Efficient-core base frequency | 2.7 GHz |
|---|
| Low Power Efficient-core Base Frequency | 1000 MHz |
|---|
| Built-in processor | Yes |
|---|
| Processor cache | 24 MB |
|---|
Memory
| Internal memory installed | No |
|---|
| Memory slots type | SO-DIMM |
|---|
| Number of memory slots | 2 |
|---|
| Maximum internal memory | 192 GB |
|---|
| Supported memory clock speeds | 6400 MHz |
|---|
| Supported memory types | DDR5-SDRAM |
|---|
| Memory channels | Dual-channel |
|---|
Storage
| Storage drives installed | No |
|---|
| Supported storage drive types | SSD |
|---|
| Storage drive sizes supported | M.2 |
|---|
| Storage drive interface | M.2 |
|---|
| Number of storage drives supported | 1 |
|---|
| Maximum storage capacity | 2000 TB |
|---|
Graphics
| On-board graphics card | Yes |
|---|
| Graphics card family | Intel |
|---|
| On-board graphics card model | Intel Arc 140T |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE201 |
|---|
| Ethernet LAN | Yes |
|---|
| Wi-Fi | Yes |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| DC-in jack | Yes |
|---|
Design
| Product colour | White |
|---|
| Cooling type | Active |
|---|
| On/off switch | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product type | Mini PC barebone |
|---|
Power
| Power supply type | External AC adapter |
|---|
| Power supply | 150 W |
|---|
| AC adapter output voltage | 19.5 V |
|---|
| AC adapter output current | 7.69 A |
|---|
Weight & dimensions
| Width | 144 mm |
|---|
| Depth | 112 mm |
|---|
| Height | 42 mm |
|---|
| Weight | 600 g |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
