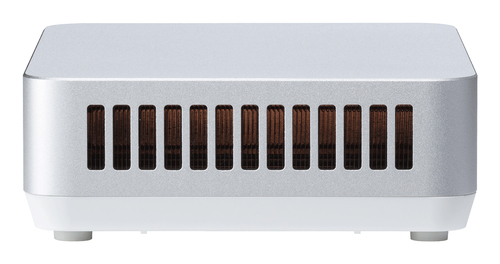

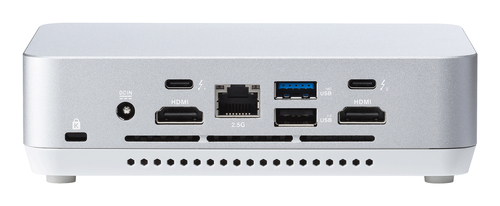

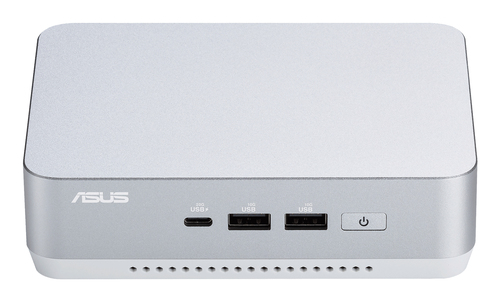

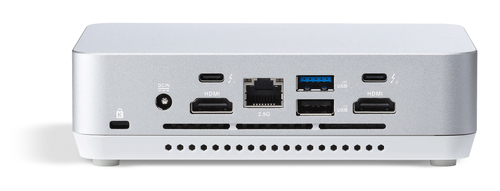

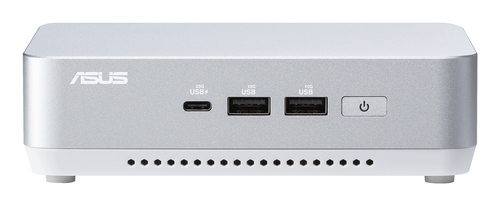

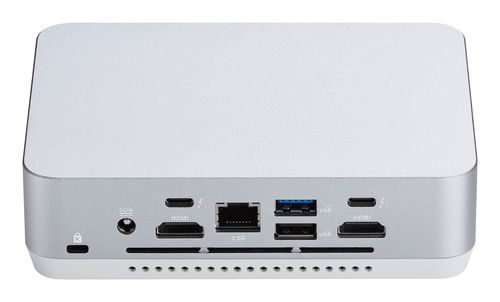

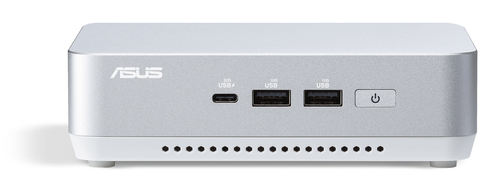

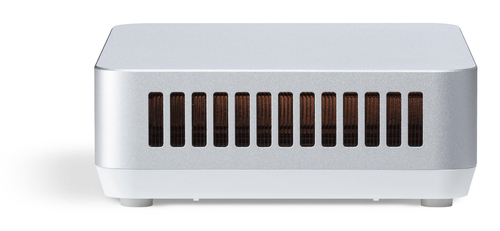

ASUS NUC 14 Pro+ RNUC14RVSU70000UI Mini PC Silver 155H
Part number RNUC14RVSU70000UI
ASUS NUC 14 PRO+ BAREBONE KIT 14TH GEN CORE ULTRA7 155H DDR5
- Performance: Superior performance besting all other competitive mini-PCs
- Design: Features an eye-catching 5 x 4-inch anodized aluminum chassis
- AI Enabled: Harnesses the prowess of the Intel® Core™ Ultra 9 processor to locally run generative AI workloads
- Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth®
- Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster
- Manufacturer
- ASUS
- Part number
- RNUC14RVSU70000UI
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Smaller, Faster, Better, AI Enabled
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Built-in processor | Yes |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Memory slots type | SO-DIMM |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive types | SSD |
|---|---|
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Maximum storage capacity | 4 TB |
| On-board graphics card | Yes |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
| Discrete graphics card model | Not available |
| Built-in speaker(s) | No |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Chassis type | Mini PC |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| On/off switch | Yes |
| Housing material | Aluminium |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Power supply type | External AC adapter |
|---|---|
| Power supply | 120 W |
| Width | 144 mm |
|---|---|
| Depth | 112 mm |
| Height | 41 mm |
| Weight | 600 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
