Overview

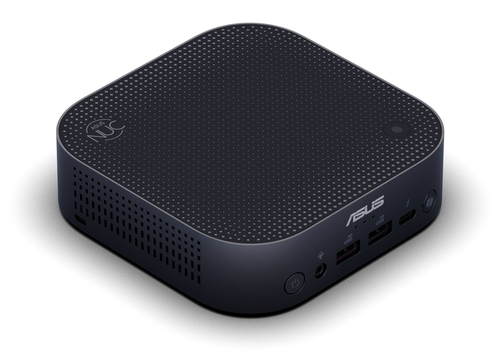

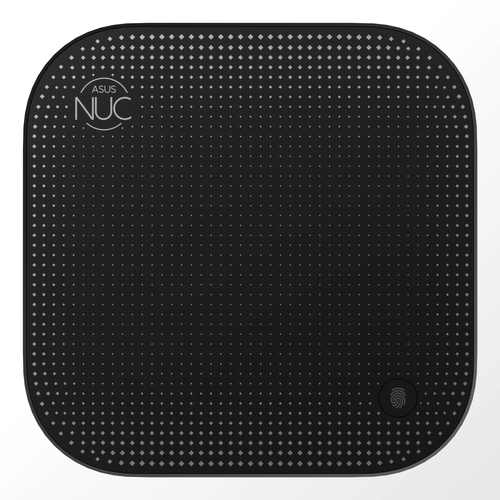

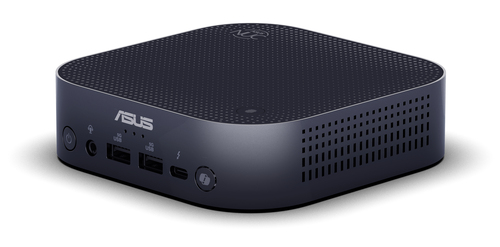

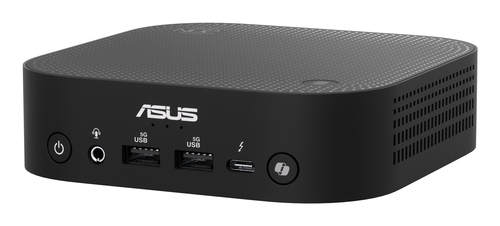

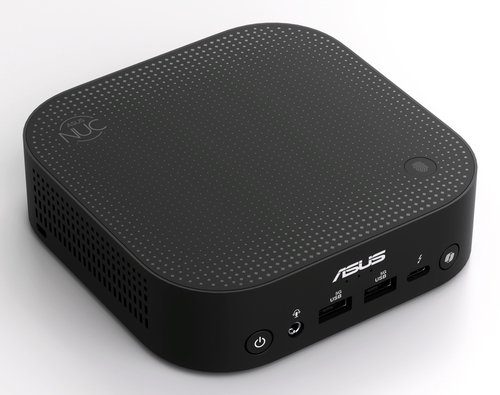

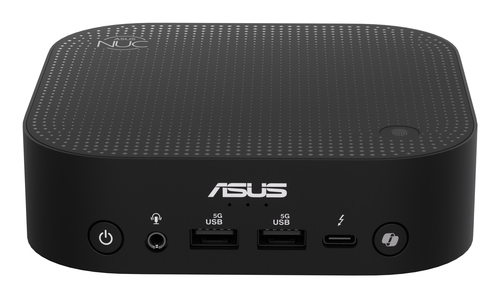

ASUS NUC 14 Pro AI (Lunar Canyon)
Create, achieve, and stay secure with AI Innovation
The World’s First AI Mini PC,powered by the Intel® Core™ Ultra processor (Series 2, formerly Lunar Lake), delivering advanced AI capabilities in a compact
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 9 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 288V |
|---|
| Processor cores | 8 |
|---|
| Processor threads | 8 |
|---|
| Processor boost frequency | 5.1 GHz |
|---|
| Performance cores | 4 |
|---|
| Low Power Efficient-cores | 4 |
|---|
| Performance-core Max Turbo Frequency | 5.1 GHz |
|---|
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
|---|
| Performance-core base frequency | 3.3 GHz |
|---|
| Low Power Efficient-core Base Frequency | 3300 MHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 30 W |
|---|
| Maximum turbo power | 37 W |
|---|
Neural processor unit (NPU)
| Copilot+ PC | Yes |
|---|
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|---|
| Total processor performance up to | 120 TOPs |
|---|
| NPU performance up to | 48 TOPs |
|---|
| GPU performance up to | 67 TOPs |
|---|
Memory
| Internal memory | 32 GB |
|---|
| Internal memory type | LPDDR5x-SDRAM |
|---|
| Memory clock speed | 8533 MHz |
|---|
| Memory channels | Dual-channel |
|---|
Storage
| Total storage capacity | 1 TB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 1 TB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 1 TB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2280 (22 x 80 mm) |
|---|
Graphics
| Discrete graphics card | No |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel Arc Graphics |
|---|
| On-board graphics card model | Intel Arc Graphics 140V |
|---|
Performance
| Fingerprint reader | Yes |
|---|
| Product type | Mini PC |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 2500 Mbit/s |
|---|
| LAN controller | Intel I226-V |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
|---|
| WLAN controller manufacturer | Intel |
|---|
| WLAN controller model | Intel Wi-Fi 7 BE201 |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|

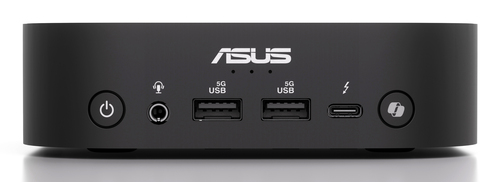

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | Yes |
|---|
Design
| Chassis type | Mini PC |
|---|
| Colour name | Black |
|---|
| Volume | 0.6 L |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Product colour | Black |
|---|
| Copilot key | Yes |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system installed | Windows 11 Pro |
|---|
Display
| Display included | No |
|---|
Audio
| Audio chip | Realtek ALC3288 |
|---|
Weight & dimensions
| Width | 130 mm |
|---|
| Depth | 130 mm |
|---|
| Height | 34 mm |
|---|
| Weight | 500 g |
|---|
