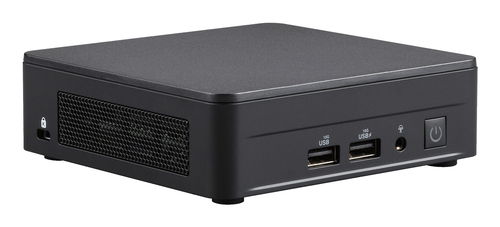

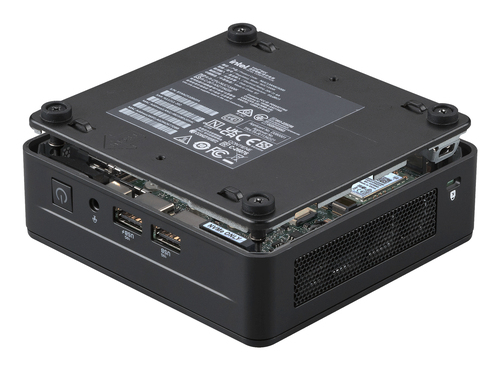

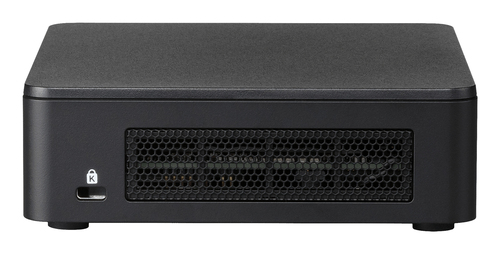

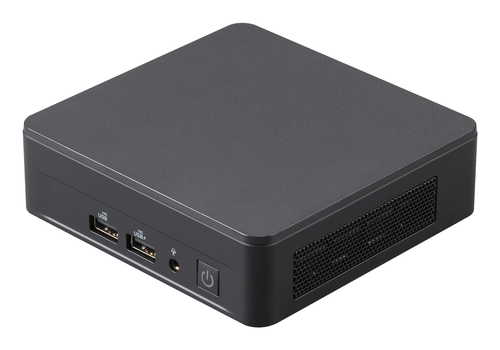

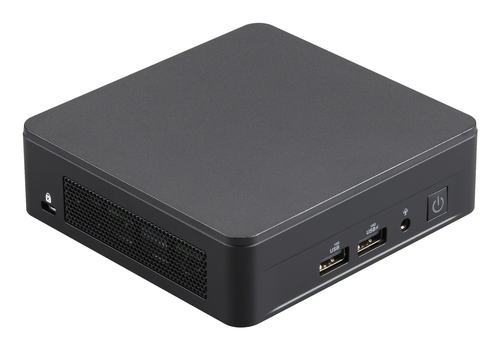

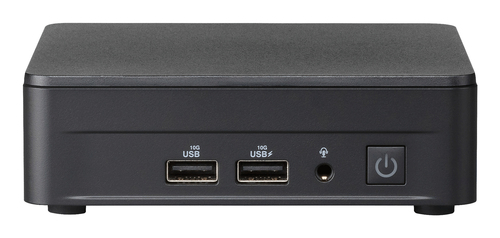

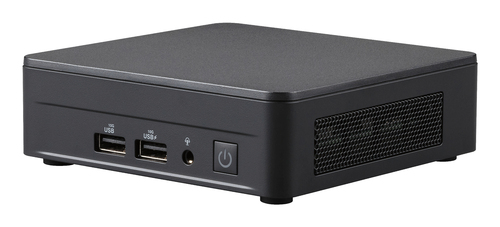

ASUS NUC RNUC13ANKI3048CUI Intel® Core™ i3 i3-1315U 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro UCFF Mini PC Black
Part number RNUC13ANKI3048CUI
ARENA CANYON ASUS NUC 13 PRO INTEL CORE I3-1315U FULL SYSTEM
- Windows 11 Pro 64-bit
- Intel Core i3-1315U (10MB Cache)
- 8GB (3200MHz) DDR4-SDRAM & 512GB SSD
- Manufacturer
- ASUS
- Part number
- RNUC13ANKI3048CUI
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel Core i3-13xxx |
| Processor model | i3-1315U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Internal memory | 8 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Market positioning | Business |
|---|---|
| Motherboard chipset | Intel SoC |
| Product type | Mini PC |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of SATA III connectors | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
|---|
| Power supply | 90 W |
|---|
| Chassis type | UCFF |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 11 Pro |
| Display included | No |
|---|
| Audio chip | Realtek ALC269 |
|---|
| Width | 117 mm |
|---|---|
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 502 g |
