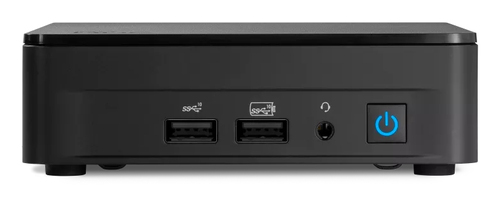

ASUS NUC 13 RNUC13ANKI30000UI UCFF Black i3-1315U
Part number RNUC13ANKI30000UI
ARENA CANYON ASUS NUC INTEL I3- 12 CORE W11 HOME/PRO PWR CORD. SLIM
- Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
- For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
- Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
- Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
- Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
- Manufacturer
- ASUS
- Part number
- RNUC13ANKI30000UI
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Business Driver. Space Saver.
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i3 |
| Processor generation | Intel Core i3-13xxx |
| Processor model | i3-1315U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Built-in processor | Yes |
| Processor cache | 10 MB |
| Memory slots type | SO-DIMM |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| ECC | No |
| Supported storage drive types | SSD |
|---|---|
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| On-board graphics card | No |
|---|---|
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 4 |
| Motherboard form factor | UCFF |
|---|---|
| Number of processors supported | 1 |
| Built-in speaker(s) | No |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 2.0 ports quantity | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial port via internal header | No |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| PCI Express slots version | 4.0 |
|---|
| Chassis type | UCFF |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Windows operating systems supported | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise |
|---|---|
| Linux operating systems supported | Yes |
| Power supply type | External AC adapter |
|---|
| Width | 117 mm |
|---|---|
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 502 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
