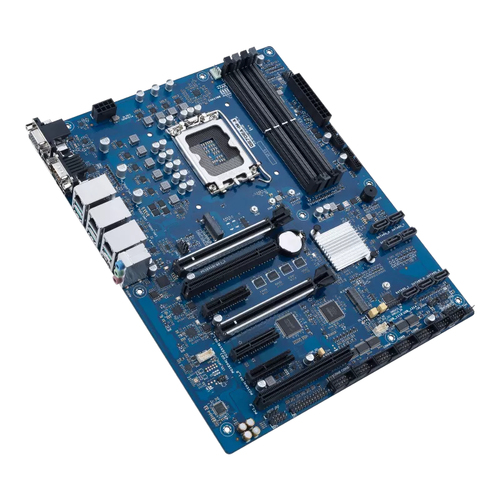

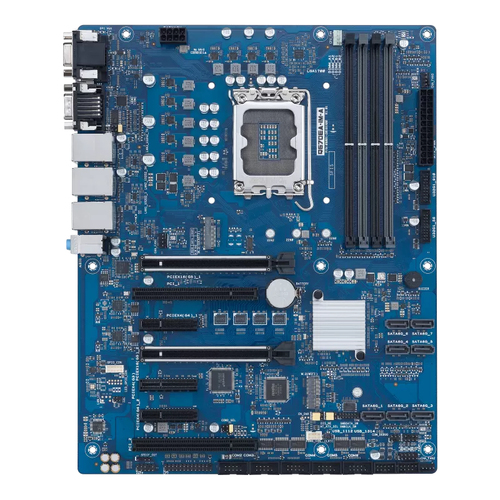

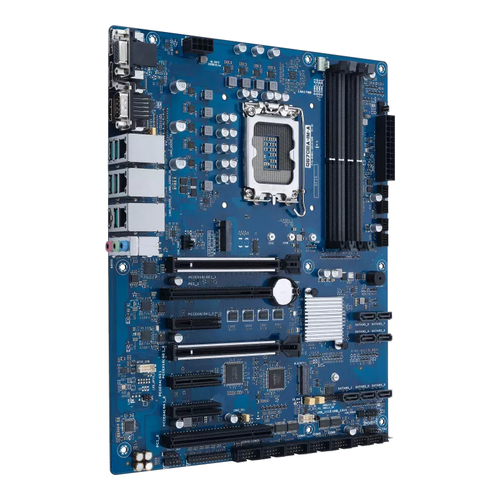

ASUS Q670EA-IM-A Intel Q670E LGA 1700 ATX
Part number Q670EA-IM-A
Q670E ATX MOTHERBOARD Q670EA/LGA1700 Q670E USB3.2 G2 COM
- Supports up to 125-watt Intel® 14th/13th/12th Gen processors
- 2x PCIe® x16 slots support dual graphic cards
- Four U-DIMM slots for up to 128 GB 4400 MHz DDR5

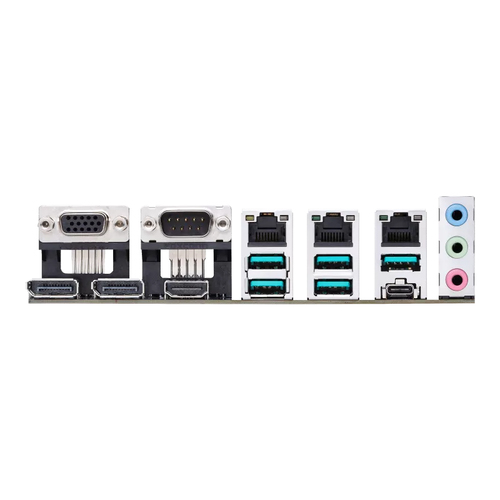

- Supports VGA, HDMI®, and DisplayPort™
- Seven-year longevity supply program
- Advanced I/O and connectivity features
- Wide temperature range endurance: 0–60° C
- Manufacturer
- ASUS
- Part number
- Q670EA-IM-A
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview
Q670E ATX motherboard, LGA1700 Socket for 14th/13th/12th Gen Intel CPU, 125W TDP, 4*U-DIMM, 3*Lan, 2*PCIe x16 slots, 2*PCI, VGA, HDMI, DP++, 2*M.2 slot, 6*COM, 7*SATA, USB 3.2 Gen 2, USB Type C
The ASUS Q670EA-IM-A is an ATX industrial motherboard featuring rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, COM ports and three Intel LAN ports. And there is rich expandability with a PCIe slot, PCI slot, M.2 E key, and M.2 M key. This makes the ASUS Q670EA-IM-A an ideal choice for a wide range of embedded applications.
As the world’s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Maximum internal memory | 128 GB |
| Supported storage drive interfaces | M.2, SATA III |
|---|---|
| Number of HDDs supported | 7 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Maximum resolution | 4096 x 2160 pixels |
|---|
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 7 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 5 |
| TPM connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Microphone in | Yes |
| Serial ports quantity | 1 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I226-LM, Intel I226-V |
| Motherboard chipset | Intel Q670E |
|---|---|
| Audio chip | Realtek ALC897 |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 IoT Enterprise, Windows 10 x64 |
| Certification | CE, FCC, BSMI, VCCI, RCM CE-LVD |
| PCI Express x4 (Gen 4.x) slots | 2 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI slots | 2 |
| Number of M.2 (M) slots | 2 |
| Storage temperature (T-T) | -40 - 85 °C |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| PCI Express x4 (Gen 3.x) slots | 1 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
