ASUS PROART-RTX5070TI-O16G
View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8
ASUS

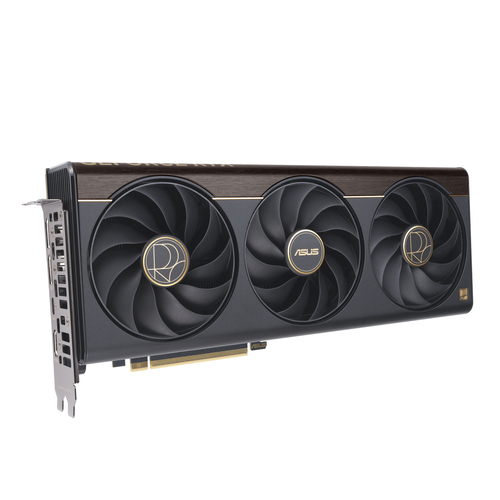

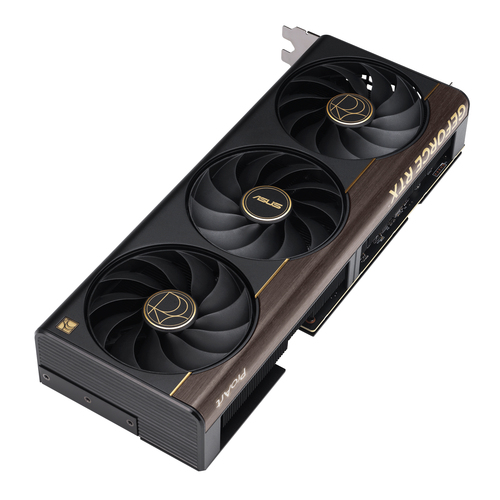

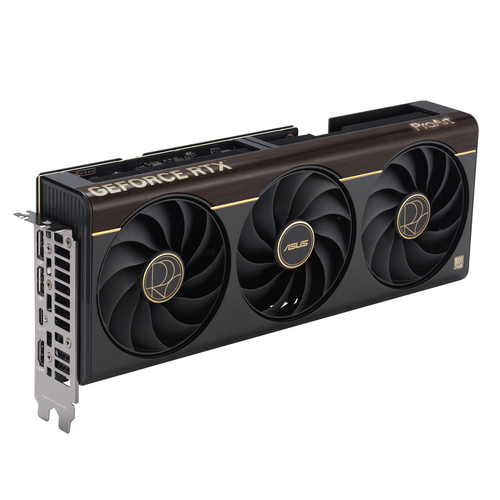

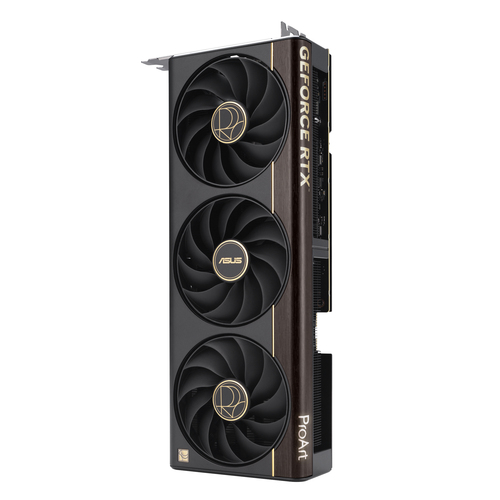

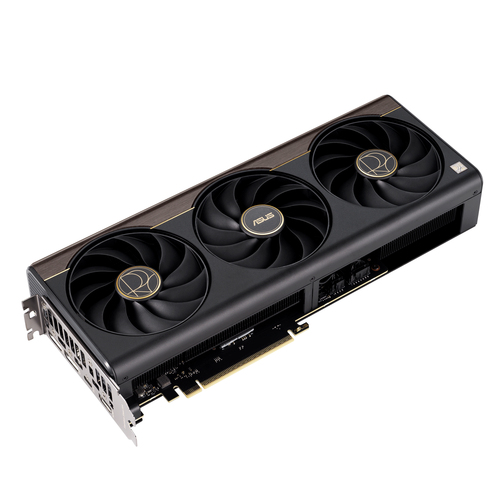

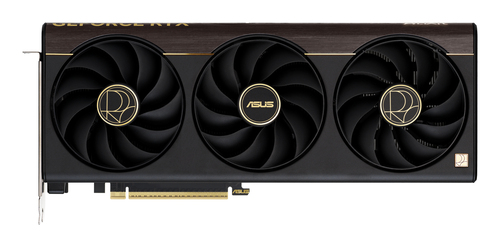

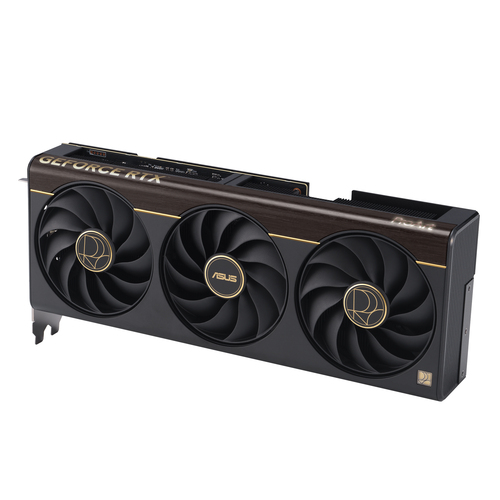

ASUS ProArt -RTX5070TI-O16G NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

Part number PROART-RTX5070TI-O16G

ASUS PROART GEFORCE RTX 5070 TI OC EDITION GRAPHICS CARD

  • NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
  • 7680 x 4320 pixels 256 bit 28 Gbit/s PCI Express 5.0
  • HDMI ports quantity: 1 DisplayPorts quantity: 2
  • OpenGL version: 4.6
  • 1x 16-pin
Manufacturer
ASUS
Part number
PROART-RTX5070TI-O16G
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware

Overview

Visionary. Versatile. Timeless.

The ProArt GeForce RTX™ 5070 Ti combines a compact 2.5-slot design with potent cooling – three Axial-tech fans, a vapor chamber, and a phase-change GPU thermal pad – to deliver GeForce RTX 50 Series performance to both full-scale towers and space-saving SFF builds. A USB Type-C® port enhances versatility for content creation workflows, while a wood-patterned laminate trim and low-key Aura-lit logo help deliver a refined aesthetic.

Specifications

Processor
CUDAYes
CUDA cores8960
Graphics processor familyNVIDIA
Graphics processorGeForce RTX 5070 Ti
Processor boost clock speed2588 MHz
Processor frequency (OC mode)2610 MHz
Maximum resolution7680 x 4320 pixels
Parallel processing technology supportNot supported
Maximum displays per videocard4
Memory
Discrete graphics card memory16 GB
Graphics card memory typeGDDR7
Memory bus256 bit
Data transfer rate28 Gbit/s
Ports & interfaces
Interface typePCI Express 5.0
HDMI ports quantity1
HDMI version2.1b
DisplayPorts quantity2
DisplayPort version2.1b
USB Type-C ports quantity1
Performance
OpenGL version4.6
HDCPYes
HDCP version2.3
Dual Link DVINo
NVIDIA G-SYNCYes
Overclocked (OC) editionYes
Design
Cooling typeActive
Cooling technologyASUS Axial-tech
Number of fans3 fan(s)
Form factorFull-Height/Full-Length (FH/FL)
Bracket heightFull-Height (FH)
Number of slots2.5
IlluminationYes
SFF readyYes
Product colourMulticolour
Power
Minimum system power supply850 W
Supplementary power connectors1x 16-pin
System requirements
Windows operating systems supportedYes
Weight & dimensions
Weight1.39 kg
Length304 mm
Depth50 mm
Height126 mm
Packaging data
Package width405 mm
Package depth233 mm
Package height88.5 mm
Package weight2.04 kg
Package typeBox

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
