ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB
Part number PRO WS W890-SAGE
ASUS PRO WS W890-SAGE INTEL W890 (LGA 4710-2) CEB WORKSTATION MOTHERBOARD, PCIE
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA4710-2 Socket Supports up to 86-Core CPUs: Ready for Intel® Xeon® 600 Processors for Workstation.

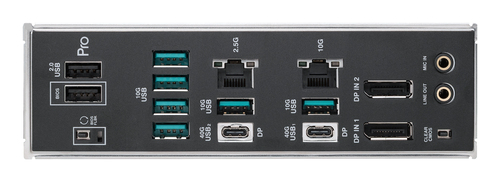

- Ultrafast Connectivity: Four PCIe® 5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and Memory Overclocking: Support for up to 4TB ECC R-DIMM DDR5 memory modules (2DPC).
- Robust Power and Thermal Design: 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
- Ready for Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion card, plus ASUS Control Center Express software for real-time monitoring and management
- Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
- Manufacturer
- ASUS
- Part number
- PRO WS W890-SAGE
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Overview

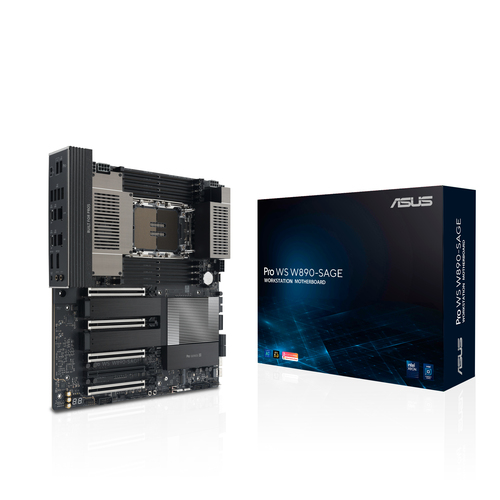

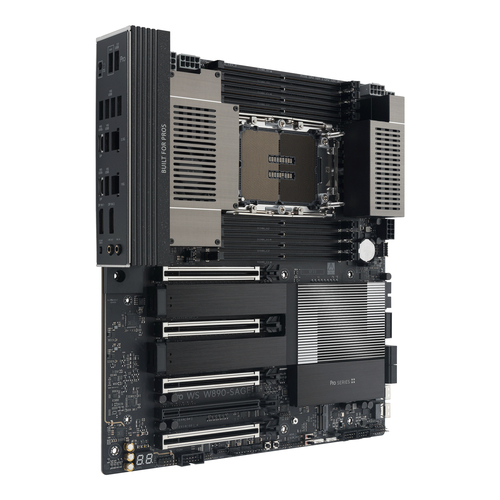

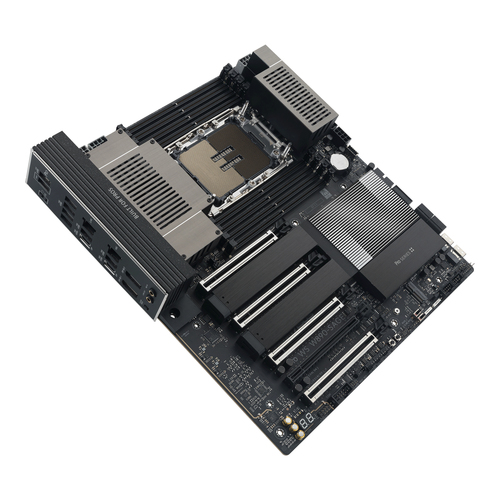

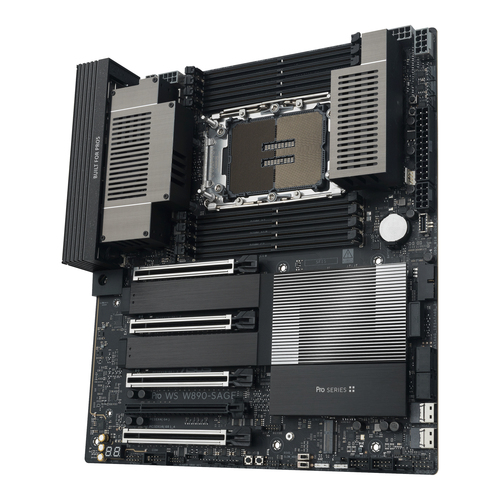

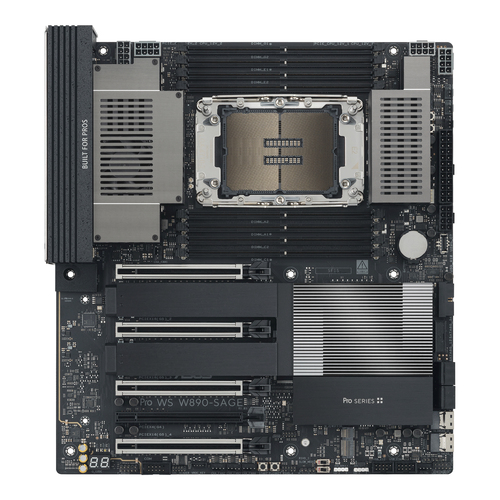

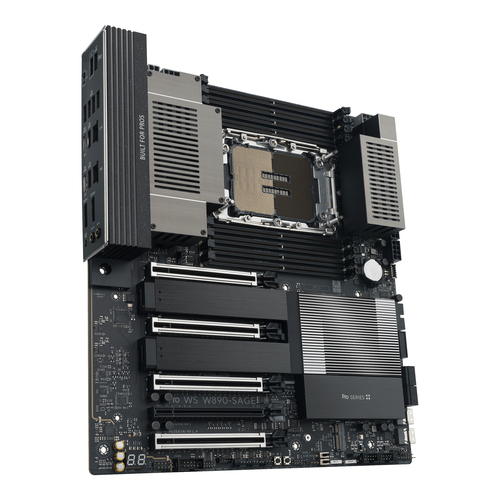

The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 4710-2 |
| Compatible processor series | Intel® Xeon® |
| Supported processor sockets | LGA 4710-2 |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 4 TB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 5, 1, 10 |
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 5 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| Integrated SAS ports | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 2 |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Motherboard chipset | Intel W890 |
|---|---|
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | CEB |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 4 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| BIOS flashback button | Yes |
| Package width | 376 mm |
|---|---|
| Package depth | 320 mm |
| Package height | 100 mm |
| Package weight | 4.12 kg |
| Width | 305 mm |
|---|---|
| Depth | 280 mm |
| Height | 50 mm |

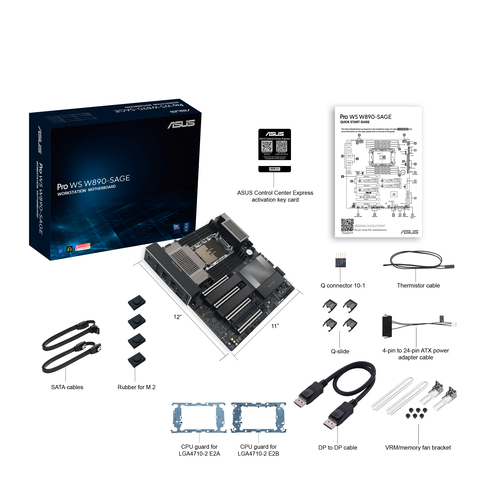

| Cables included | SATA, DisplayPort |
|---|---|
| Screws included | Yes |
| Weight | 2.75 kg |
|---|---|
| Number of M.2 (E) slots | 1 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
