ASUS

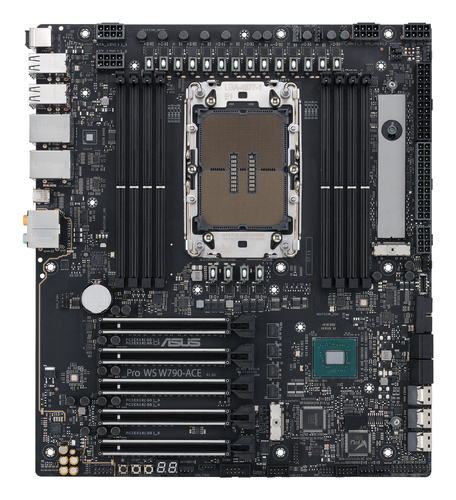

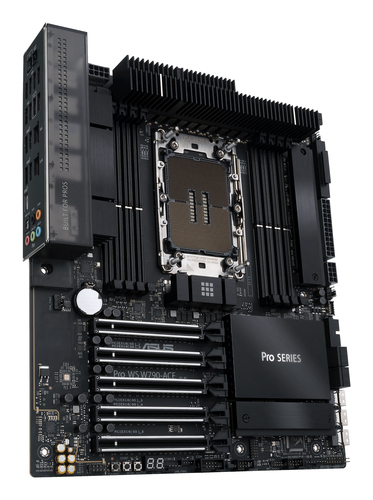

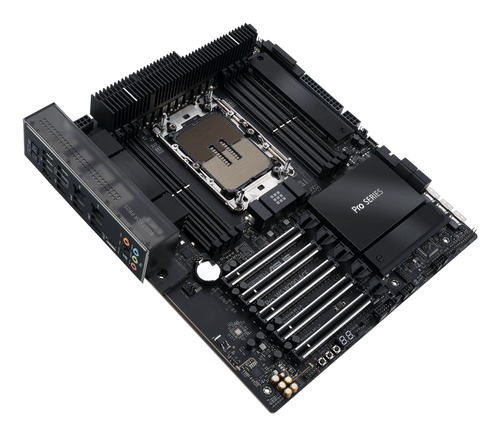

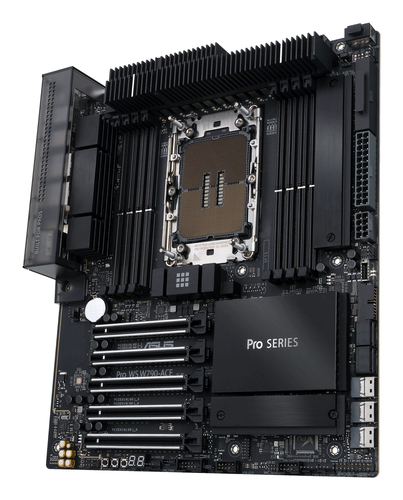

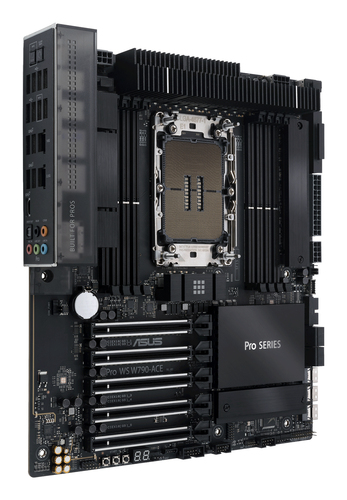

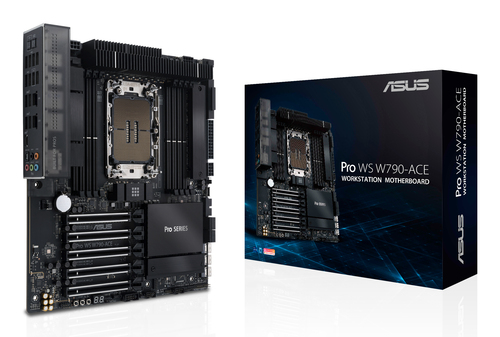

ASUS PRO WS W790-ACE Intel W790 LGA 4677 (Socket E) SSI CEB
Part number PRO WS W790-ACE
ASUS PRO WS W790-ACE INTEL W790 CEB MB 5XPCIE 5.0X16 SLOTS M.2 P
- Intel LGA 4677 (Socket E) Intel Xeon W
- Workstation SSI CEB Intel W790 Realtek S1220A 7.1 channels
- DDR5-SDRAM 8 DIMM Maximum internal memory: 2 TB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 512 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Manufacturer
- ASUS
- Part number
- PRO WS W790-ACE
- Condition
- New
- Category
- System Components › Motherboards
- 1GPA category
- Hardware
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-3400, W-2400 |
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 2 TB |
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| On-board graphics card | No |
|---|
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |

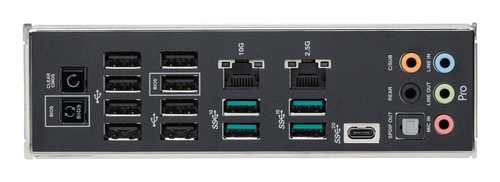

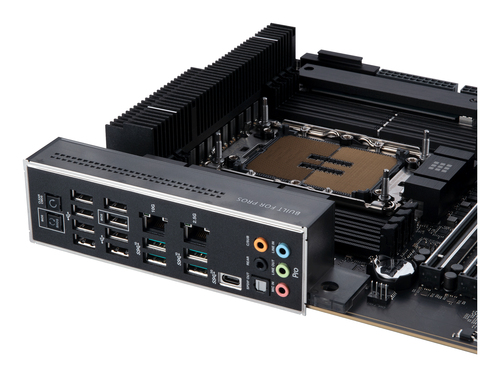

| USB 2.0 ports quantity | 8 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
| Motherboard chipset | Intel W790 |
|---|---|
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| PCI Express x16 (Gen 5.x) slots | 5 |
|---|---|
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| Package width | 370 mm |
|---|---|
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Width | 305 mm |
|---|---|
| Depth | 277 mm |
| Height | 50 mm |
| Weight | 1.81 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
