Overview
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor socket | LGA 1851 (Socket V1) |
|---|
| Compatible processor series | Intel Core Ultra (Series 2) |
|---|
Memory
| Supported memory types | DDR5-SDRAM |
|---|
| Number of memory slots | 4 |
|---|
| Memory slots type | DIMM |
|---|
| Memory channels | Dual-channel |
|---|
| ECC сompatibility | Non-ECC |
|---|
| Supported memory clock speed (max) | 6400 MHz |
|---|
| Maximum internal memory | 256 GB |
|---|
| Unbuffered memory | Yes |
|---|
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|
| Supported storage drive interfaces | M.2, SATA III |
|---|
| Number of HDDs supported | 4 |
|---|
| Number of storage drives supported | 6 |
|---|
| RAID support | Yes |
|---|
| RAID levels | 0, 1, 5, 10 |
|---|
Graphics
| Parallel processing technology support | Not supported |
|---|
| On-board graphics card | No |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
|---|
| Number of SATA III connectors | 4 |
|---|
| Front panel audio connector | Yes |
|---|
| Front panel connector | Yes |
|---|
| ATX Power connector (24-pin) | Yes |
|---|
| CPU fan connector | Yes |
|---|
| Number of CPU fan connectors | 1 |
|---|
| Number of chassis fan connectors | 2 |
|---|
| EPS power connector (8-pin) | Yes |
|---|
| Number of COM connectors | 2 |
|---|
| 12V power connector | Yes |
|---|

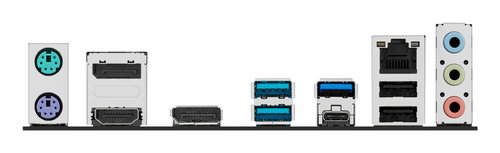

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| PS/2 ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 2 |
|---|
| Microphone in | Yes |
|---|
| USB connector type | USB Type-A, USB Type-C |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | Gigabit Ethernet |
|---|
| LAN controller | Intel® I219-LM |
|---|
| Wi-Fi | No |
|---|
| Top Wi-Fi standard | Not available |
|---|
Features
| Motherboard chipset | Intel® Q870 |
|---|
| Audio output channels | 7.1 channels |
|---|
| Product colour | Multicolour |
|---|
| Component for | PC |
|---|
| Motherboard form factor | micro ATX |
|---|
| Motherboard chipset family | Intel |
|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
|---|
Expansion slots
| PCI Express x1 (Gen 4.x) slots | 1 |
|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|
| Number of M.2 (M) slots | 2 |
|---|
BIOS
| BIOS memory size | 256 Mbit |
|---|
Packaging data
| Package width | 270 mm |
|---|
| Package depth | 263 mm |
|---|
| Package height | 51.5 mm |
|---|
| Package weight | 889.03 g |
|---|
Weight & dimensions
| Width | 244 mm |
|---|
| Depth | 244 mm |
|---|
| Height | 50 mm |
|---|
Other features
| Weight | 550.6 g |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
